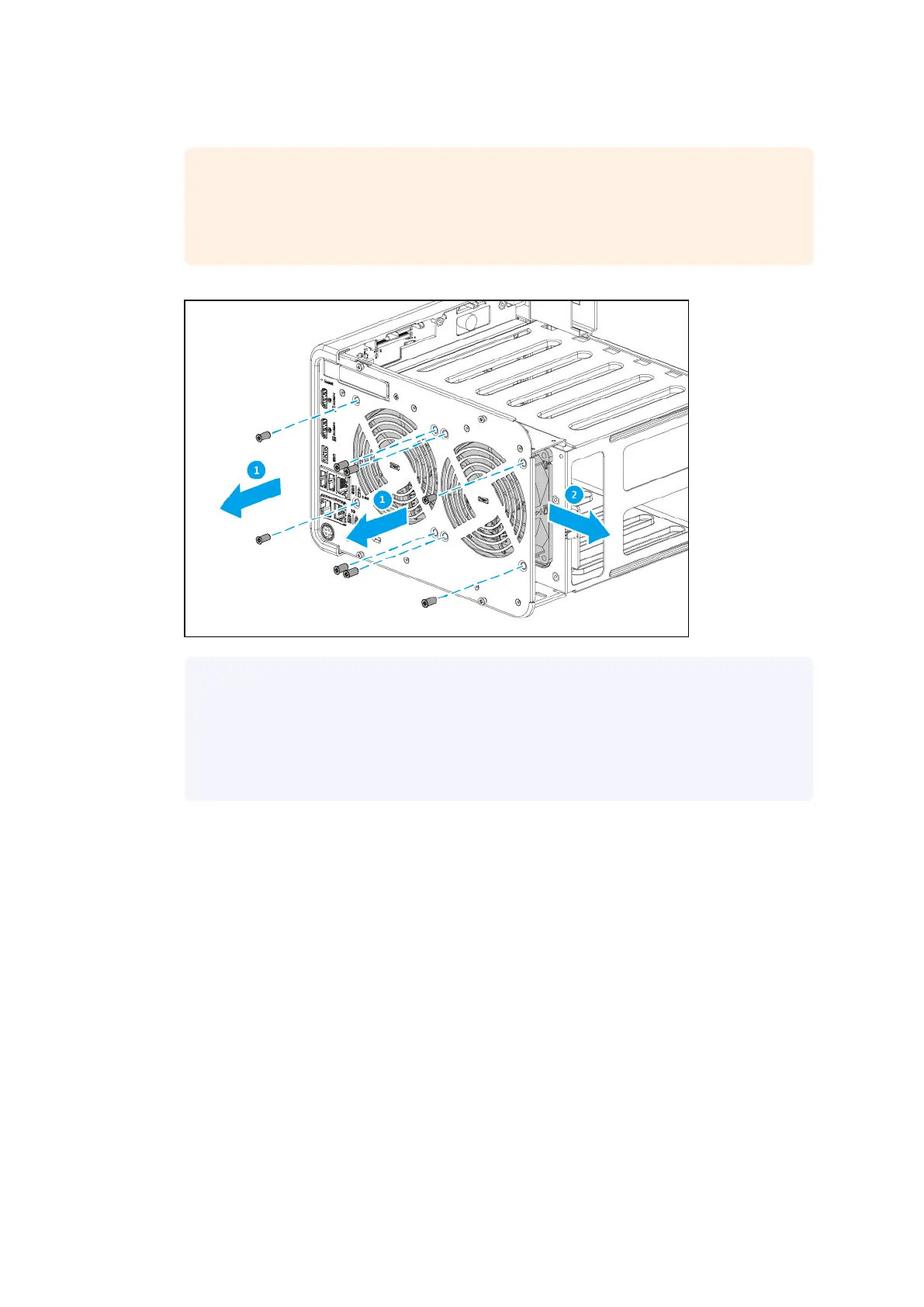

c. Remove the fan.
Important
Remember which side of the fan is attached. To ensure proper cooling, the correct
side must be reattached so that the airow is directed out of the rear panel. There
may be an arrow on the side of the fan that indicates the airow direction.
Note
• The at head self-tapping M5x10 screws require a Phillips #2 screwdriver.
• A torque of 5 kgf.cm (4.34 lbf.in) ± 0.5 kgf.cm (0.43 lbf.in) is recommended for
electric screwdrivers.
8. Remove the drive cage.
a. Position the NAS on its right side.
| NAS Repair Manual
Category B NAS Models 43
