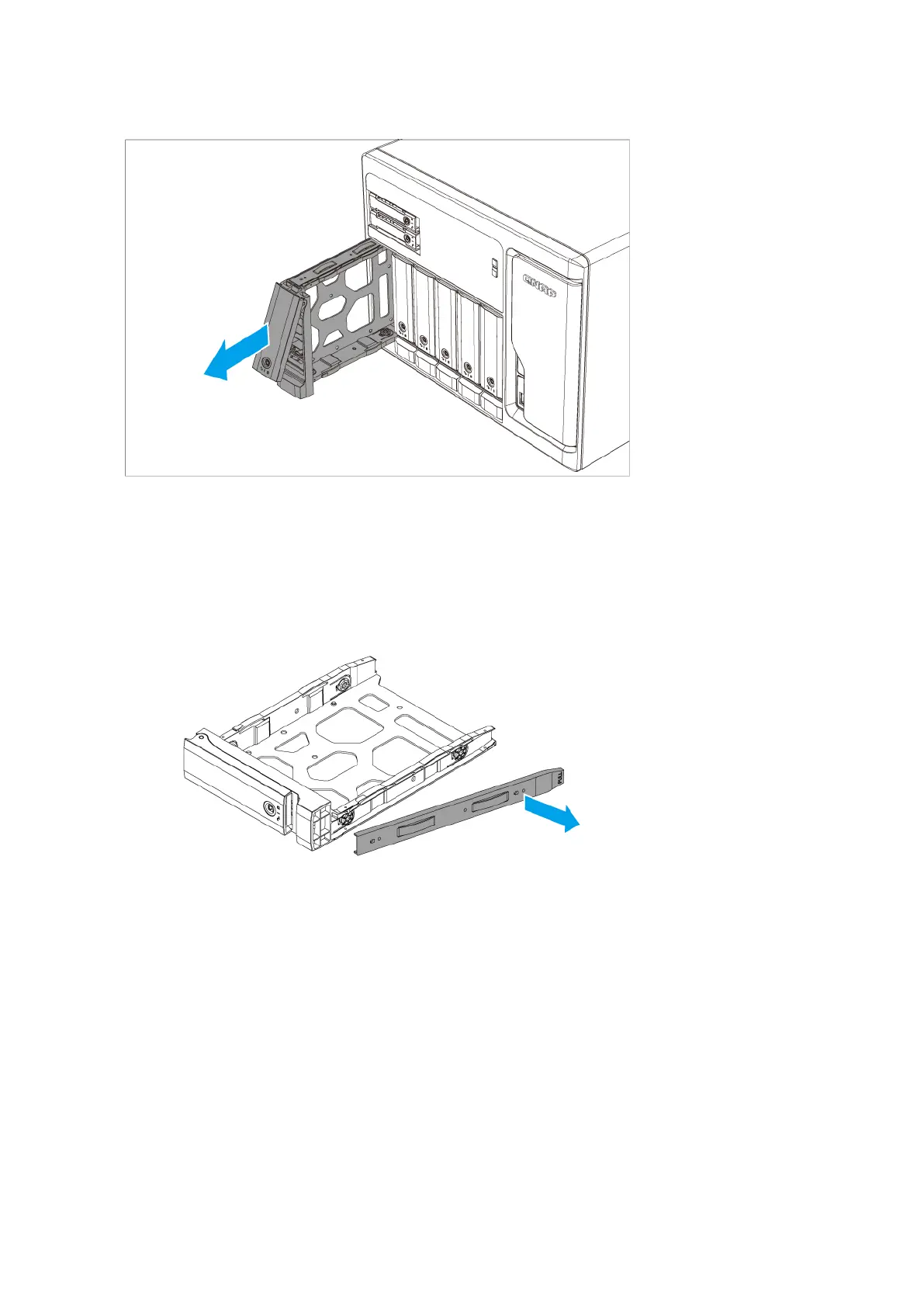

3. Install a drive on the tray.
a. Remove the right fastening panel from the drive tray.
b. Place the drive on the tray so that the holes on the bottom of the drive are aligned with the holes
on the bottom of the tray.
c. Attach the screws.
TS-hx86 User Guide
Installation and Configuration 22
