Installation Manual
3. Router Installation 28
www.qtech.ru
Install Floating Nut to Cabinet
Before installing the chassis to the cabinet, first install the floating nut on the upright square
hole bar on the both sides in the front of the cabinet.
Mark the installation position of the floating nut on the upright square hole bar
using a marker by comparing with the installation hole position on the router
hanging ears.
Install the floating nuts on the marked positions. A floating nut must be installed
on each installation hole on the hanging ear.

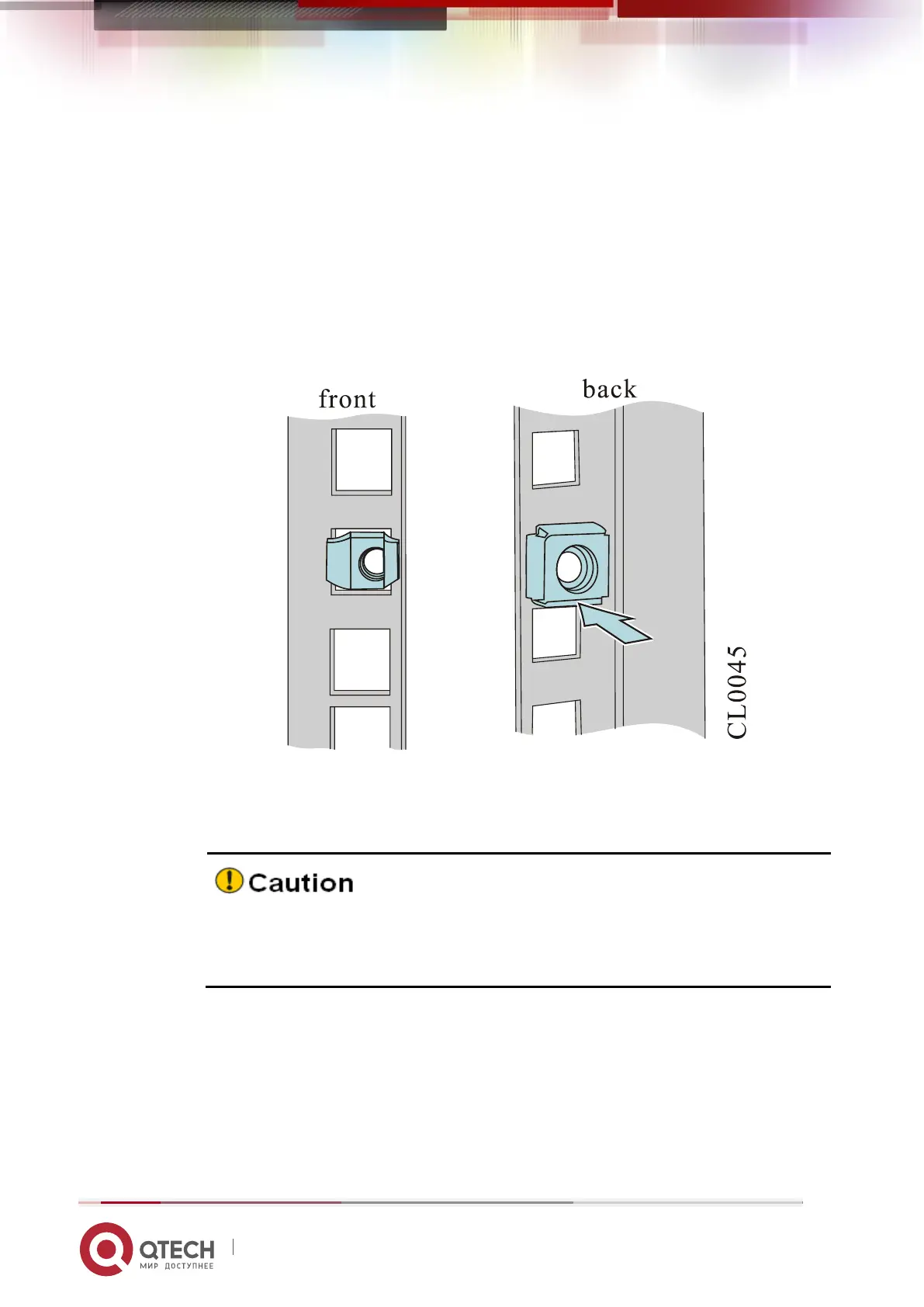

Figure 3-2 Install the floating nut
Install Router to Cabinet
Before installing the router to the cabinet, ensure that the corresponding
positions on the cabinet are installed with slide (tray) and the slide (tray)
can support the weight of router and its accessories.
The following describes the installation process of installing the router to the cabinet.
Uplift the router from both sides and place it on the slide (tray) of the cabinet.
Inset the router to the cabinet smoothly until the hanging ear of the router is
closely cling to the square hole bar in the front of the cabinet. The slide (tray)
bears the weight. The router is installed to the 19-inch standard cabinet, as
shown in the following figure.
