Installation Manual
4. Power on and Run Router 44
www.qtech.ru
When installing the fiber, do not pull out the protection rubber stopper on
the SFP module.
For unused optical interfaces, please do not unplug the dust plug on the
optical interface of the router.
It is recommended not to insert the SFP module with the fiber into the
interface slot directly. Please install after unplugging the fiber.
When installing the SFP module, do not use the hands to touch the gold-
finger of the SFP module directly.
The TX wire should be connected to the RX wire of the peer router; the RX
wire should be connected to the TX wire of the peer router.
Connect Fiber on Optical Module
Wear the anti-static wrist and confirm that the anti-static wrist is well contacted
with the skin and well-grounded.
Remove the dust cap of the fiber connector and clean the optical connector
core by using the dust-free paper with the anhydrous alcohol.

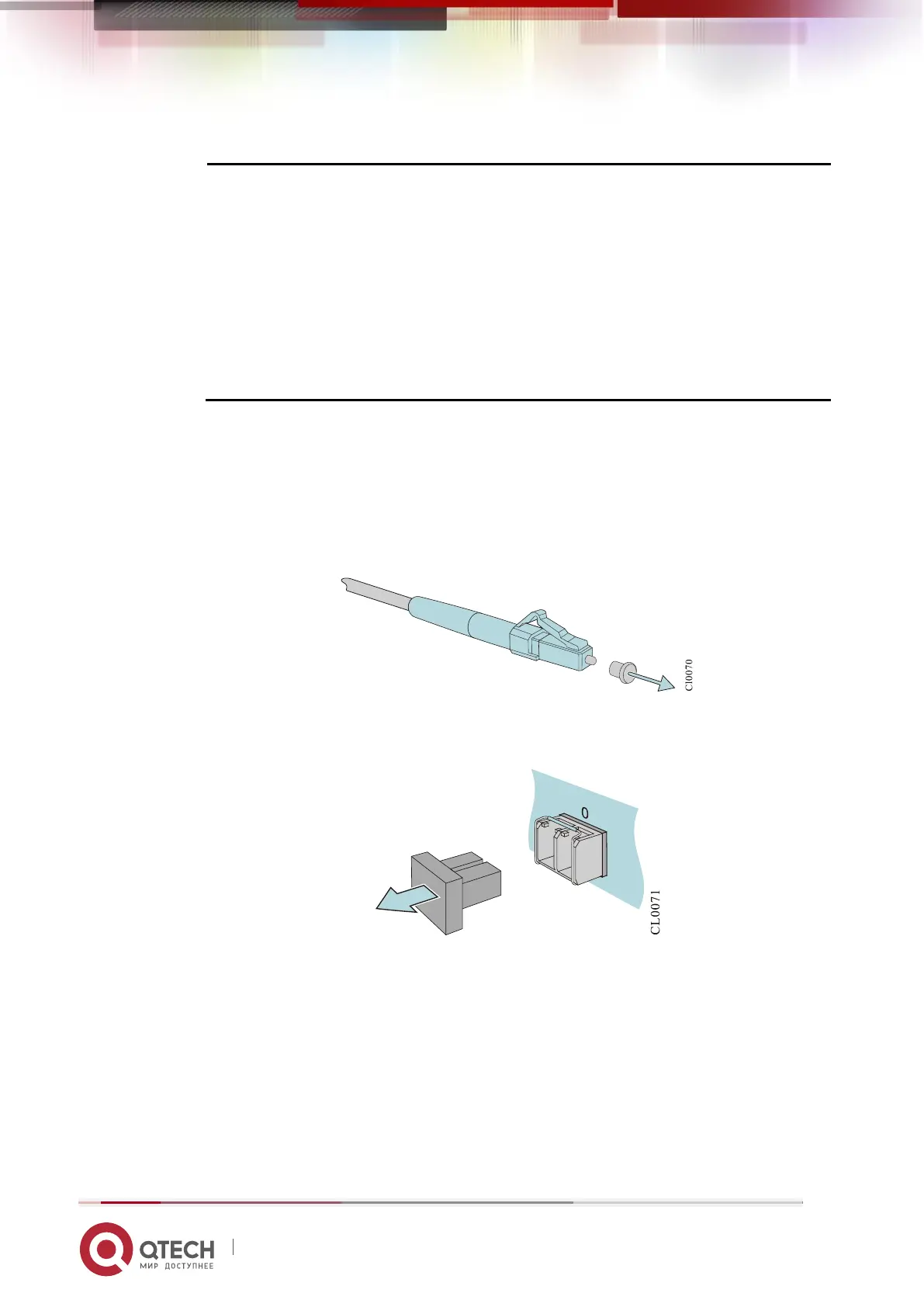

Figure 4-15 Remove the optical dust cap
Remove the dust cap of the SFP module.
Figure 4-16 Remove the dust cap of the SFP module
Insert the prepared fibers to the ports of the optical module in order.
