Quanmax KEMX-1750 series User Manual

Chapter 2
28
KEMX
-
1
7
50 serie
s
Use r’ s M a nual

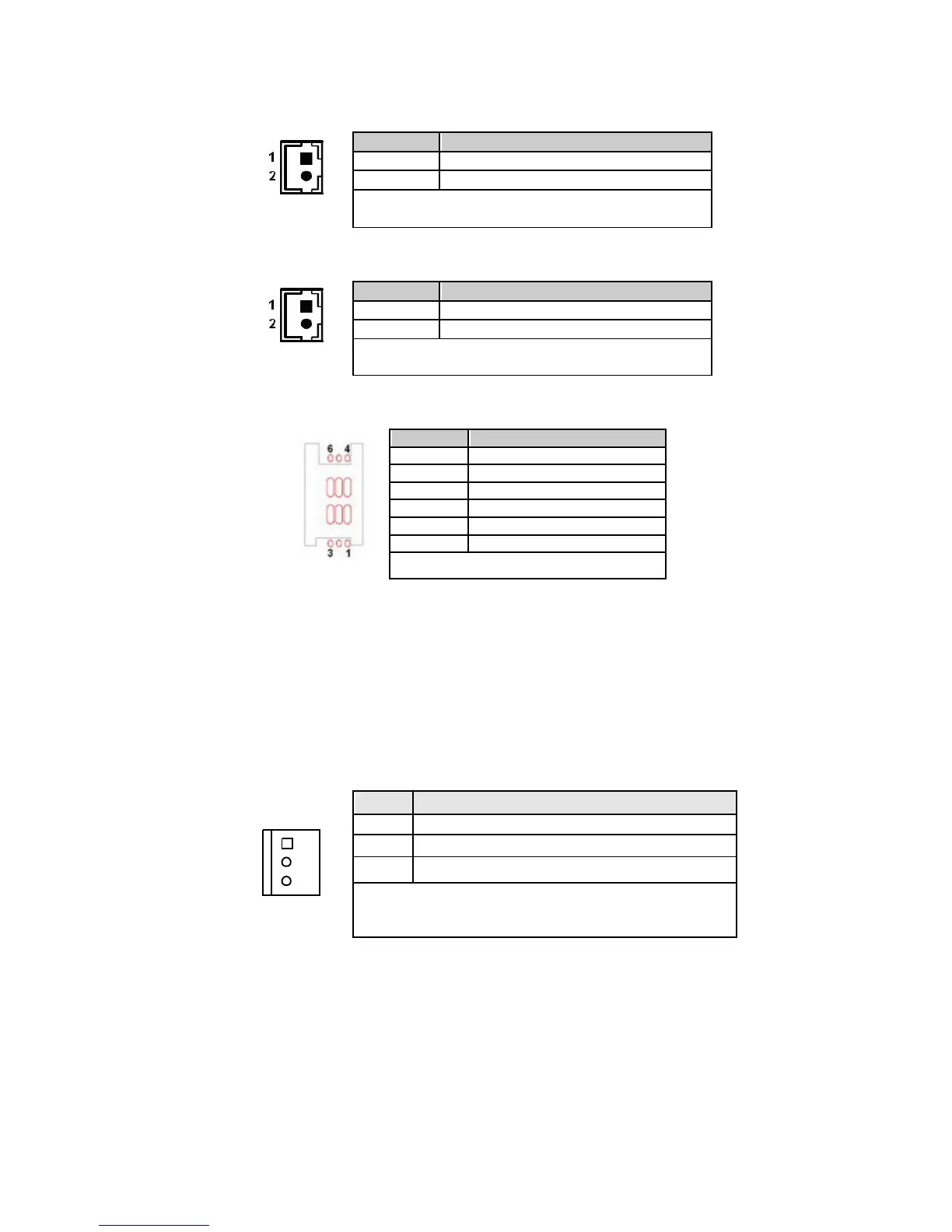

Table 20 CN10 Right Channel 3W Audio AMP Output Wafer
Pin Signal Name
1 Speaker+
2 Speaker-
Pitch:2.0mm [Y IMTEX 503PW1*02STR &
503PW1*02ST-1R]
Table 21 CN11 Left Channel 3W Audio AMP Output Wafer
Pin Signal Name
1 Speaker+
2 Speaker-
Pitch:2.0mm [Y IMTEX 503PW1*02STR &
503PW1*02ST-1R]
Table 22 SIM1 SIM Card Socket for MPCIE2
Pin Si
g
nal Nam
e
1 UIM_PW
R
2 UIM
_
RST
3 UIM_CLK
4 GND
5 UIM_VP
P
6 UIM_DATA
[Foxconn WL608C3- M04-7F]
Table 23 DIMM1 Primary DDR3 Memory SO-DIMM Socket
[ARGOSY DDRSK-20401-TP9D]
Table 24 DIMM2 Secondary DDR3 Memory SO-DIMM Socket
[ARGOSY DDRSK-20401-TP9D]
Table 25 FAN1 CPU FAN Wafer
1
3
2
Pin Signal
1 GND
2 +12V*
3 F
A
N_RPM
Pitch: 2.54mm WAFER [YIMTEX 521AW1*03ST-1R]
*：PWM Fan control supported.
