Quantum Data 802BT - Standard Image Descriptions; Appendix B Image Reference

604 Appendix B Image Reference
Standard image descriptions

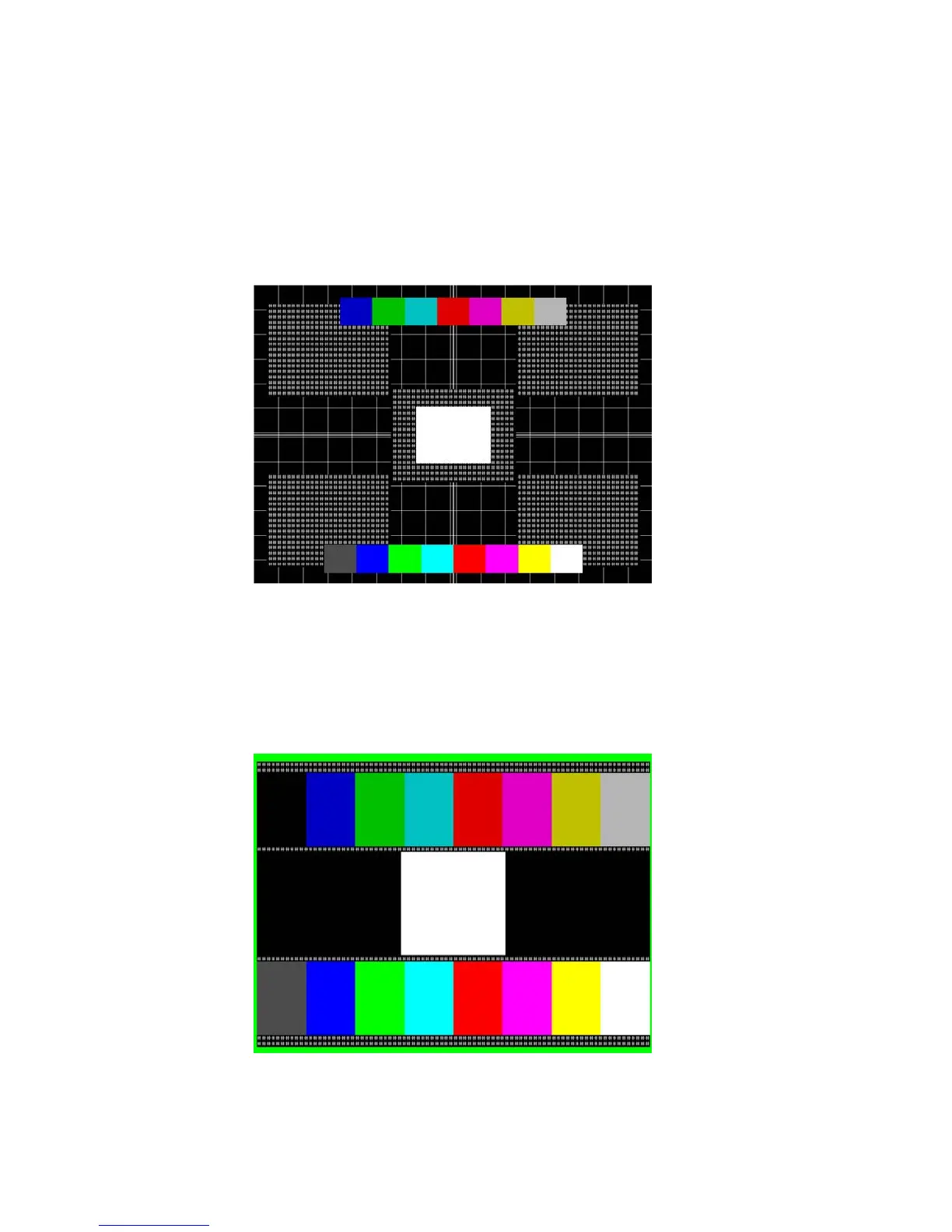

Acer1
Description Special test image developed per customer specifications. Consists of two sets of color
bars and five blocks of “#” characters on a white crosshatch with a black background.
Acer2
Description Special test image developed per customer specifications. Consists of colorbars, lines of
“#” characters, and a green border.
