802BT/802R Video Test Generator User Guide 677
PgBar64H, PgBar64V

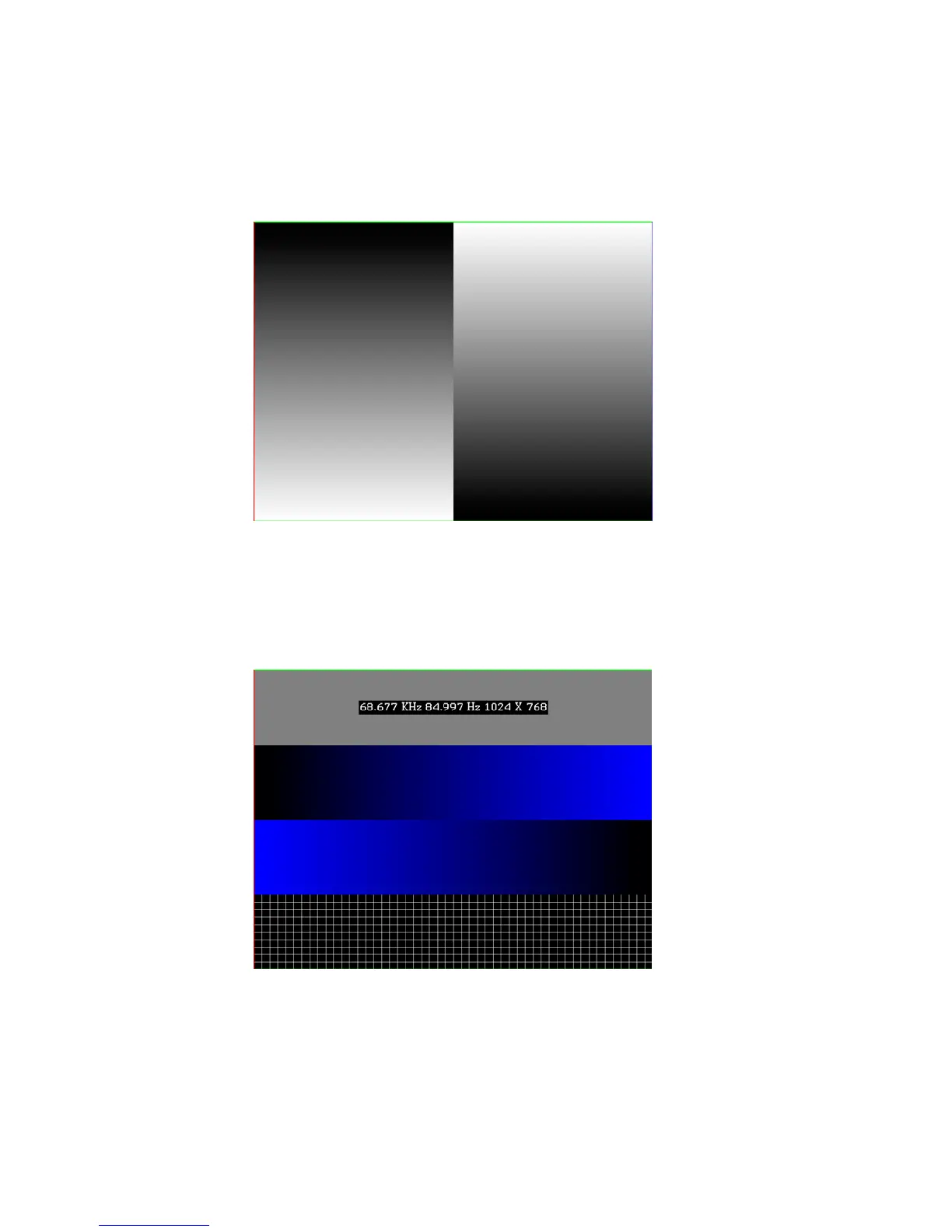

Description Special test image developed per customer specifications. The PgBar64H image is shown
below.
PgCB, PgCG, PgCR, PgCW, PgCWrgb
Description Special test image developed per customer specifications. Primary version of PgCB is
shown below. The secondary versions draw all white over the last bar.
