802BT/802R Video Test Generator User Guide 685

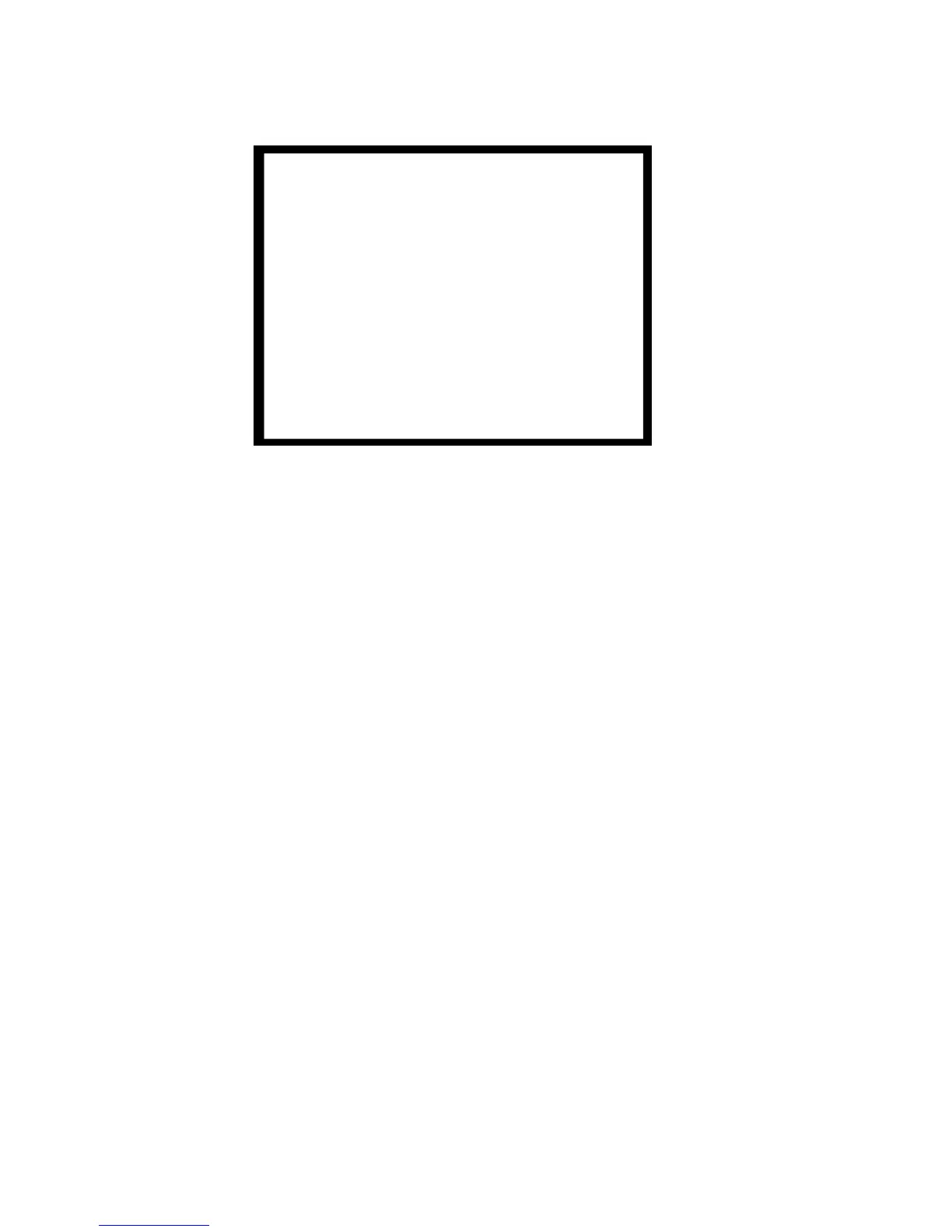

The first pattern of the primary version is shown below.
Test High voltage regulation
Method The size of the border should not change for each half of the image. The change in border
size between the two images should be within the specification limits of the monitor.
Samsung1, Samsung2
Description Special test images developed per customer specifications. The image consists of three
small simulations of Microsoft Windows® screens on a blue background (Samsung1) or
black background (Samsung2). A border and centered cross are formed with repeating
