802BT/802R Video Test Generator User Guide 619

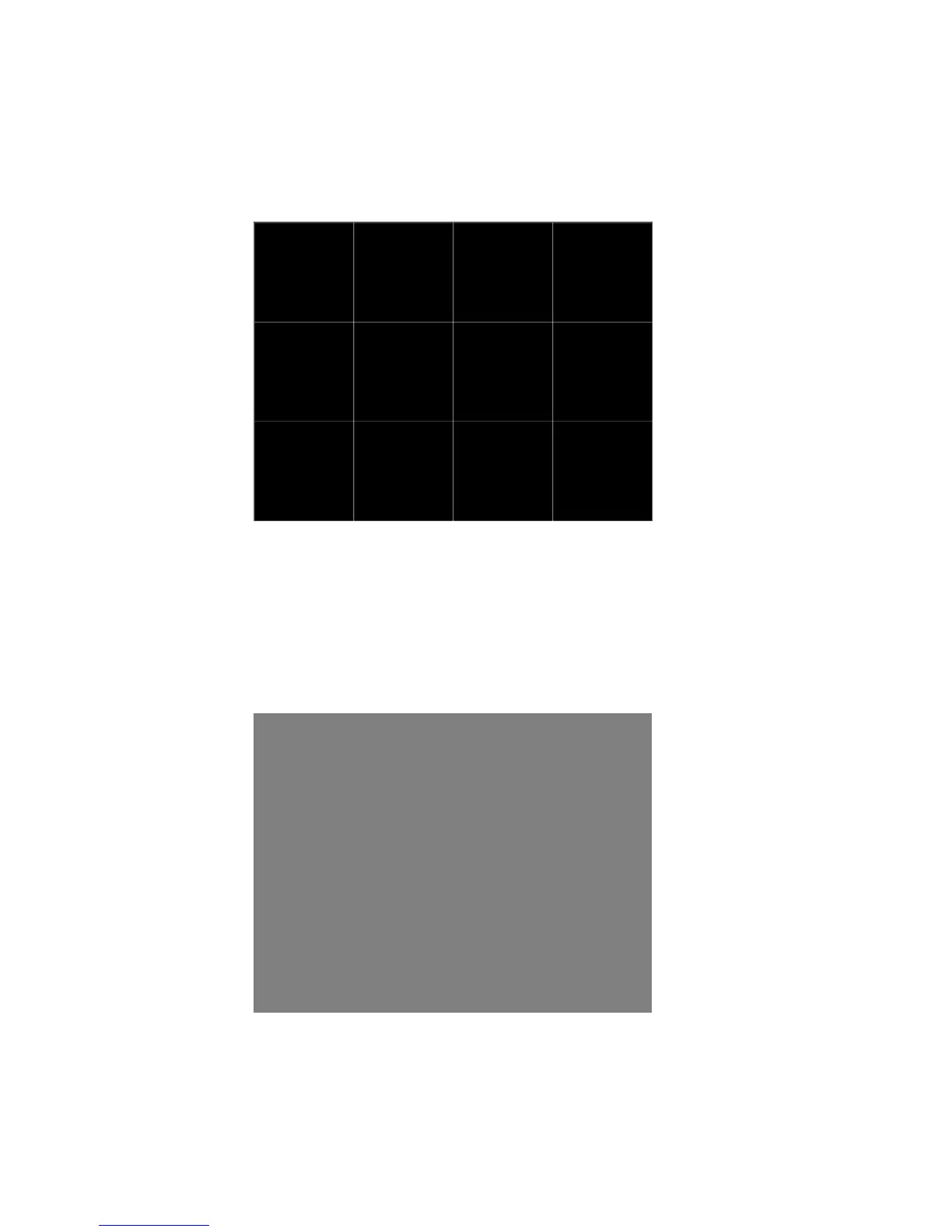

Check_02
Description Primary version is shown below. The secondary version has reverse (black lines on white
background).
Check_11
Description In the primary version, the active video area is filled with alternating black and white pixels
that form a very fine checkerboard, as shown below. The secondary version inverts the
colors in the image. The inverted image looks almost the same as the non-inverted
version.
Test Verify monitor resolution
