628 Appendix B Image Reference
Note: The DVSC command can be used to set the swing value between 150 and 1500
mVp-p.
Method To adjust the swing in 4 mV increments, press the Step key, then turn the Image knob.
Press the Step key again to reset the digital swing value to the default value, which is 1000
mVp-p for all formats.
Dyna

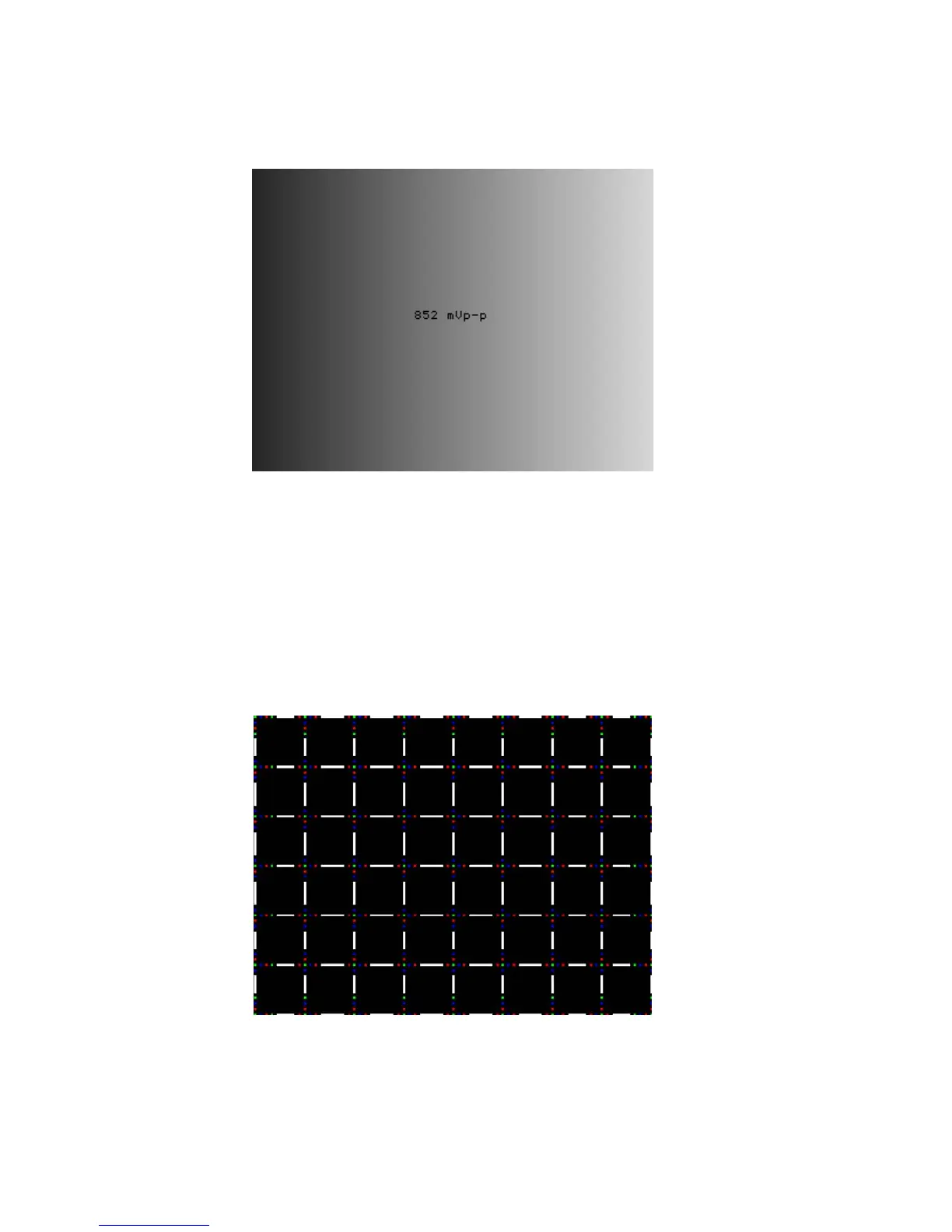

Description This image has multiple versions that display different sizes of the same pattern. Version 0
is shown below.
