802BT/802R Video Test Generator User Guide 673

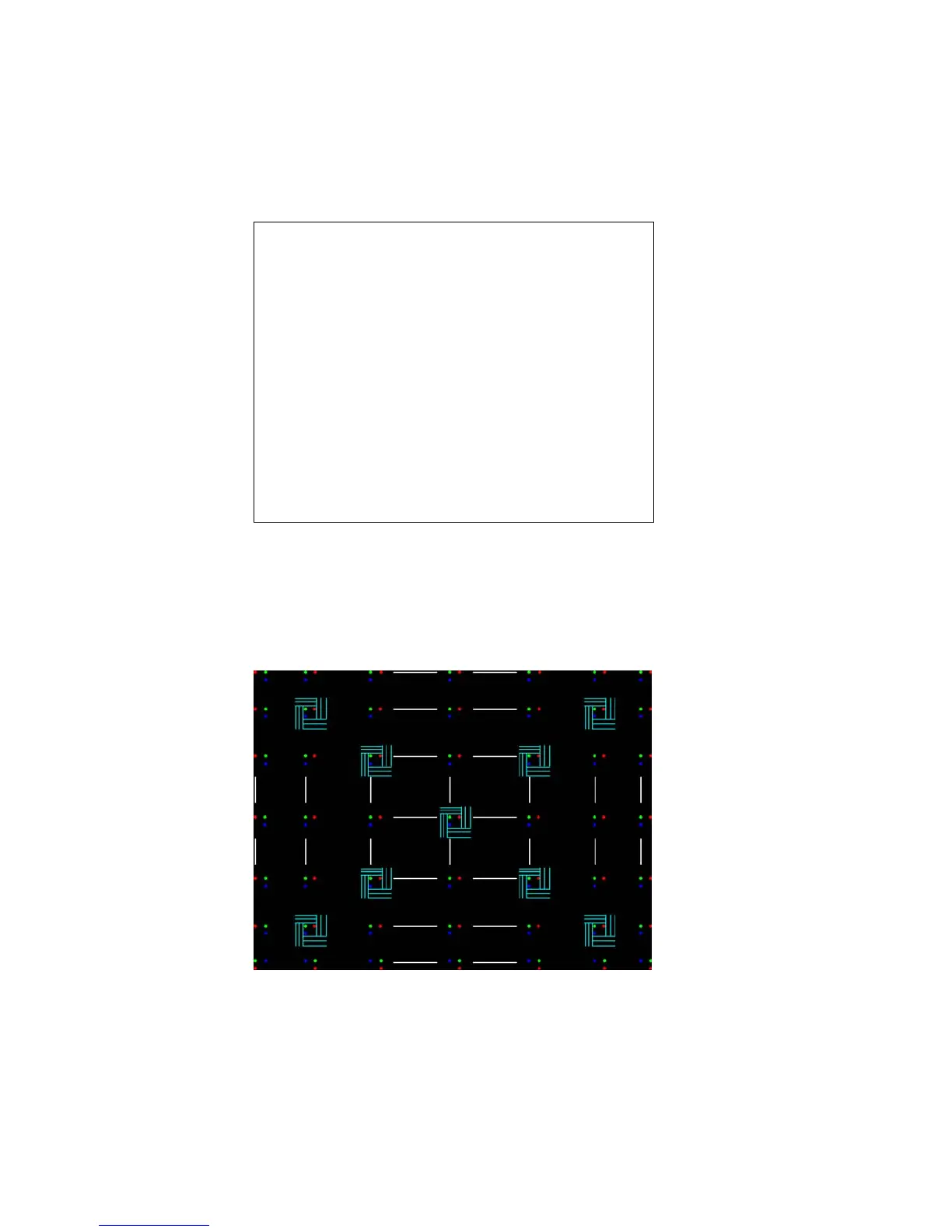

P9
Description This image is an all white active video area. The secondary version draws an all black
video area.
P10
Description Special test image developed per customer specifications. There are four versions of this
image.
After pressing the Step key, turn the Image knob to select up to 4 different versions of this
image.
