682 Appendix B Image Reference
FMTL DMT0660; ALLU
FRGB 192 192 64

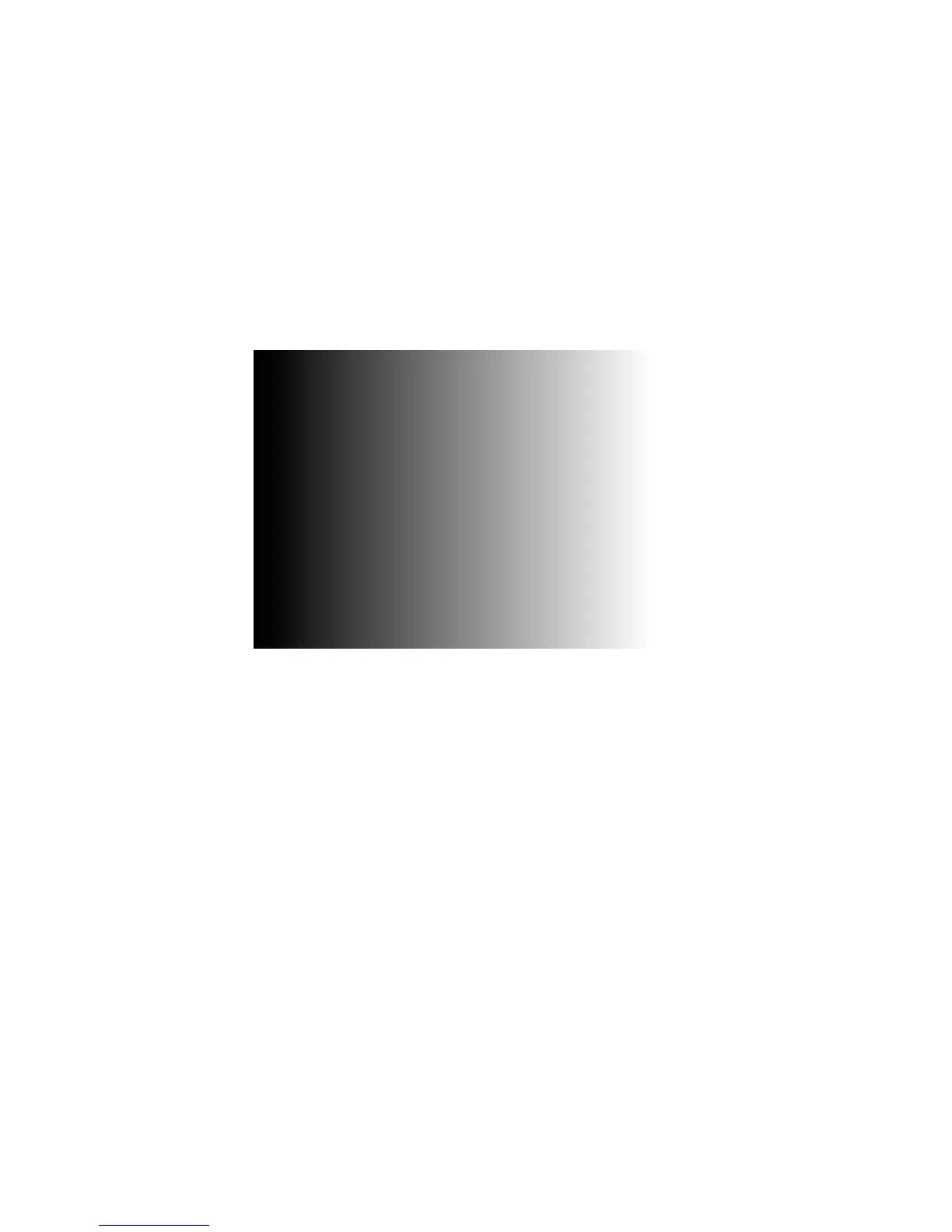

Ramp
Description This image provides an active video area starting from full black (+7.5 IRE) at one edge of
the screen to full white (+100 IRE) at opposite end of the screen.
There are 4 versions of this image—one for each edge of the display.
When selected, this image is displayed.
After pressing the Step key, turn the Image knob to change the image starting point to left,
right, top, or bottom.
RampX
Description This image provides a ramp image that continuously sweeps (moves) to the right on an
adjustable time basis.
