27Rev.A/100217
A1
B1
C1
C1
The fenders do not include
the mounting hardware.

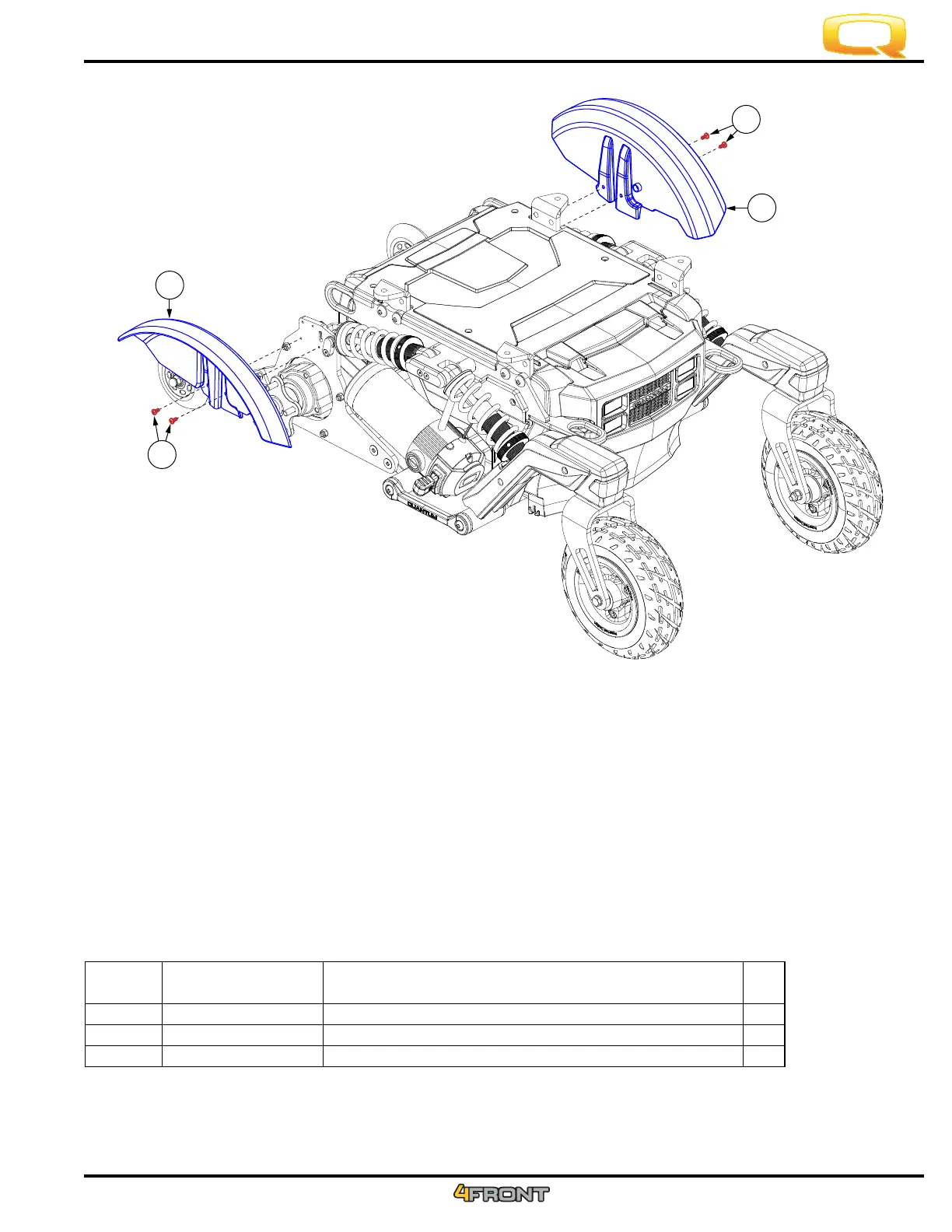

XIV. Fender Assembly — No Lights or Base Mounted Lighting
A1
B1
C1
REF #
DGN169072
DGN169073
SCRPPH1036
PART #
FENDER, RIGHT, FWD
FENDER, LEFT, FWD
SCREW,PAN HEAD,TYPE H,M4X0.7 X 8,FT,ISO 7045,CL 4.8,BZ
DESCRIPTION
1
1
2
QTY
