Quantum 4FRONT User Manual

4 Rev.A/100217

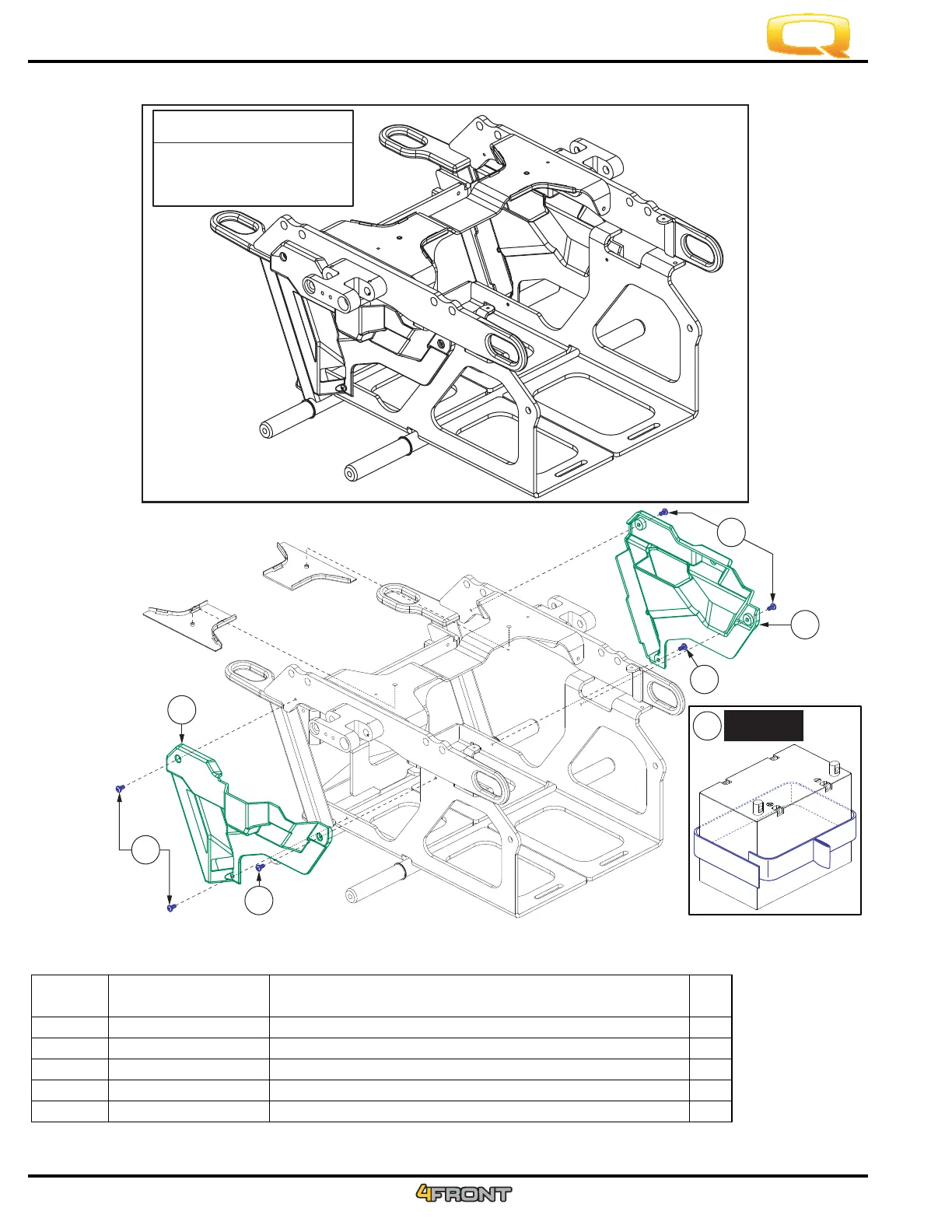

I. Main Frame Assembly
Battery Strap
D1
B1
C1
E1
E1
E1
E1
Complete Main Frame Assy
Only items or assemblies with callouts are available for replacement.
Includes the Main Frame,
Side Shroud Assy’s
and Mounting Hardware.
A1
A1
B1
C1
D1
E1
REF #
MEC1700180
DGN1611521
DGN1611522
STP8120001
SCRPPH1036
PART #
MAIN FRAME ASSEMBLY
SIDE SHROUD ASSEM, WITH REFLECTOR, RIGHT
SIDE SHROUD ASSEM, WITH REFLECTOR, LEFT
STRAP,BATTERY PULL
SCREW,PAN HEAD,TYPE H,M4X0.7 X 8,FT,CL 4.8,BZ
DESCRIPTION
1
1
1
1
1
QTY

Quantum 4FRONT Specifications

General

Drive Type	Mid-Wheel Drive
Weight Capacity	300 lbs
Foldable	No
Tire Type	Solid
Ground Clearance	3 inches
Rear Casters	6 inches
Battery Charger	8A Off-board
Seat Width	16-22 inches
Seat Depth	16-20 inches
Maximum Speed	Up to 6 mph
