Quantum 4FRONT User Manual

14 Rev.A/100217
Side
Rail
TB3 Side Rail Mounting
Joystick Knob
A1
A2
D1
A3
B1
B1
B1
B1
Midline Mount
Assy
C1

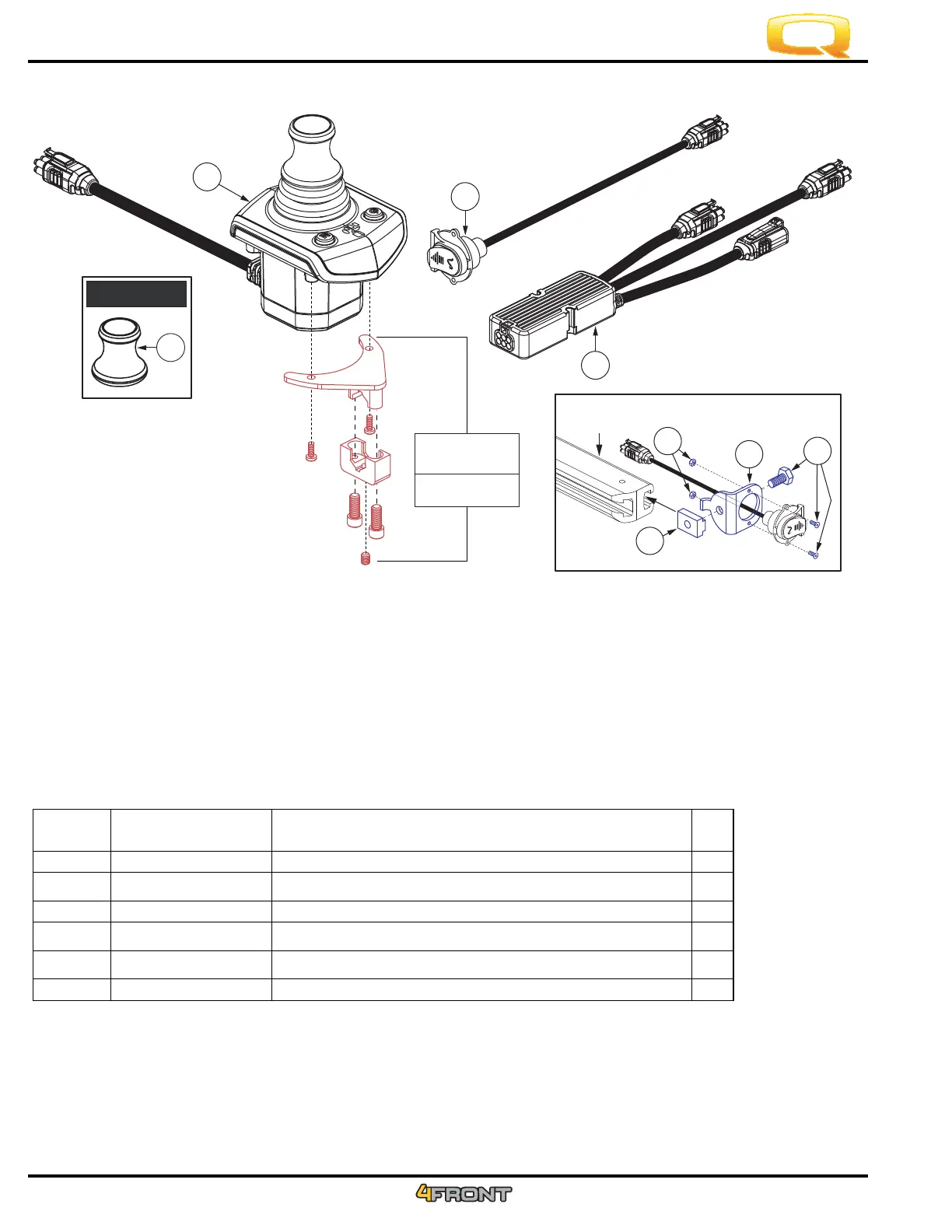

VII. Q-Logic 3 Stand Alone Joystick Assembly
A1
A2
A3
B1
C1
D1
REF #
CTL143980
HAR144001
HAR144003
FRMASMB11156
FRMASMB10454
DGN154742
PART #
STANDALONE JOYSTICK, Q-LOGIC 3, (CURTIS: 17953700-1109)
HARNESS, CHARGER/PROGRAMMER, Q-LOGIC 3, 0.9 METER,
(CURTIS: 17880701)
HARNESS, SEAT MULTIPLIER Q-LOGIC 3, (CURTIS: 17881360-02-01)
MOUNTING BRACKET,ASSY,STAND ALONE JOYSTICK,SIDE RAIL
MOUNT,C-1360-163
JOYSTICK MOUNTING BRACKET,ASSY,CURTIS STAND ALONE
JOYSTICK,MIDLINE,C-1010-263
JOYSTICK, KNOB, Q-LOGIC 3, 6.35MM-ID, (CURTIS: 17519114-01)
DESCRIPTION
1
1
1
1
1
1
QTY

Quantum 4FRONT Specifications

General

Drive Type	Mid-Wheel Drive
Weight Capacity	300 lbs
Foldable	No
Tire Type	Solid
Ground Clearance	3 inches
Rear Casters	6 inches
Battery Charger	8A Off-board
Seat Width	16-22 inches
Seat Depth	16-20 inches
Maximum Speed	Up to 6 mph
