35Rev.A/100217
Please note: Rims and hardware are included in the top-level assemblies
and are not available individually.
A1
B1
Complete Tire/Rim Assembly
Flat-free Tire
D1
Lug Nuts
x5
C1

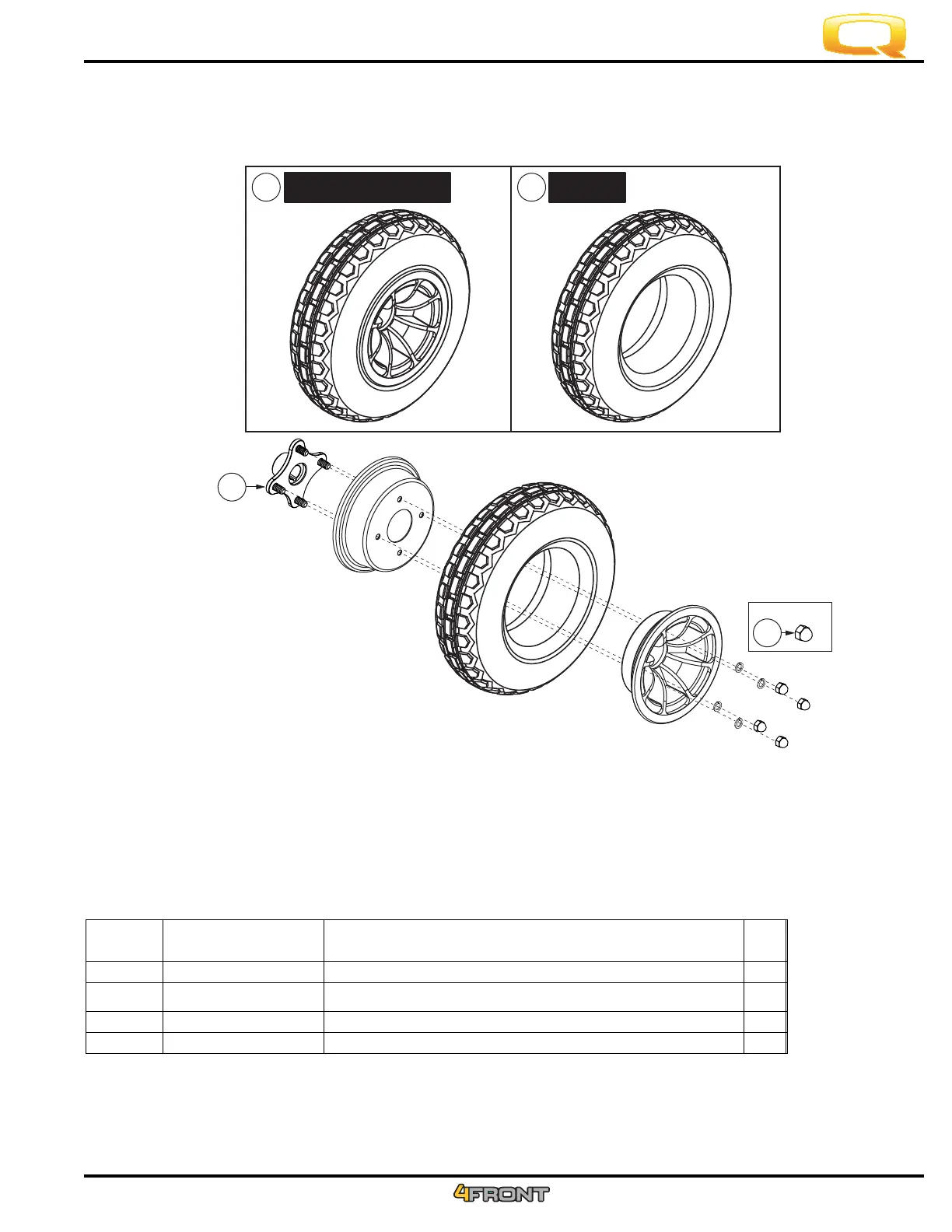

XVI. Drive Wheel Assembly — Flat-free, 4 Spoke Black Rim/Black Tire (Knobby)
A1
B1
C1
D1
REF #
WHL147601
TIR8110019
MEC145470
NUTACRN1005
PART #
WHEEL,ASSY,FLAT FREE,14" X 4" DRIVE,BLACK RIM/BLACK TIRE
TIRE,FLAT FREE,BLACK,14" OD,4" W,C166 KNOBBY
TREAD,(GALLOP: 114292)
HUB, W/STUDS, KNOBBY TIRE
NUT, HEX, ACORN, .375-24, GR 2, ZN
DESCRIPTION
1
1
1
4
QTY
