IV. Rear Caster Arm Assembly

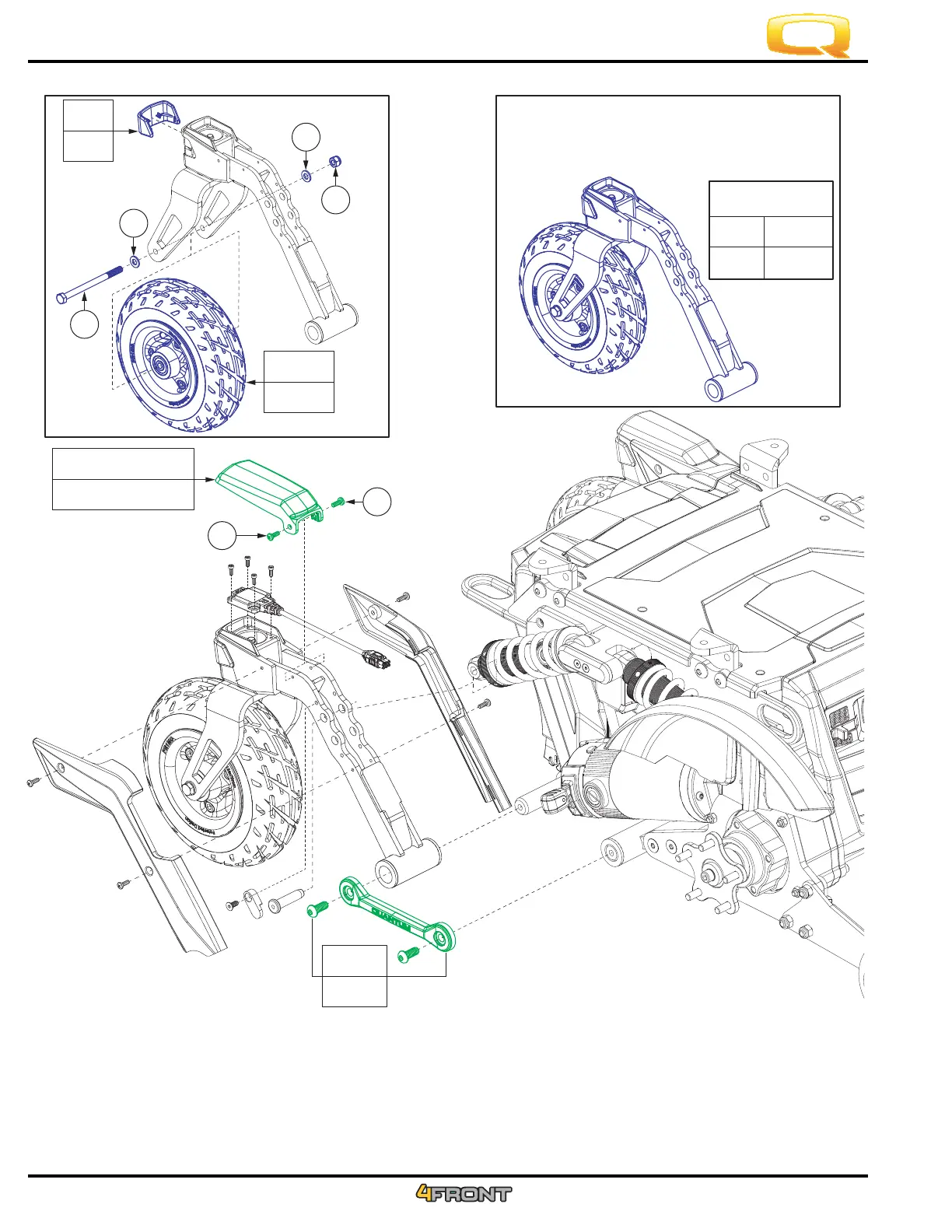

The Complete Caster Arm Assy includes the
Arm, Fork, Wheel Assy, and Mounting Hardware.
They DO NOT contain the Caster Top Cover, Arm
Shrouds, Axle Brace, or Caster Sensor.
E1
F1
E1
D1
I1
I1
Axle Brace
Assy
Caster Top Cover
(Does not include Hardware)
Caster
Bumper
Complete Caster
Arm Assy
Caster
Wheel Assy
C1
A1a
B1
H1
A1b
Right
Left
G1

Quantum 4FRONT Specifications

General

Drive Type	Mid-Wheel Drive
Weight Capacity	300 lbs
Foldable	No
Tire Type	Solid
Ground Clearance	3 inches
Rear Casters	6 inches
Battery Charger	8A Off-board
Seat Width	16-22 inches
Seat Depth	16-20 inches
Maximum Speed	Up to 6 mph
