5Rev.A/100217

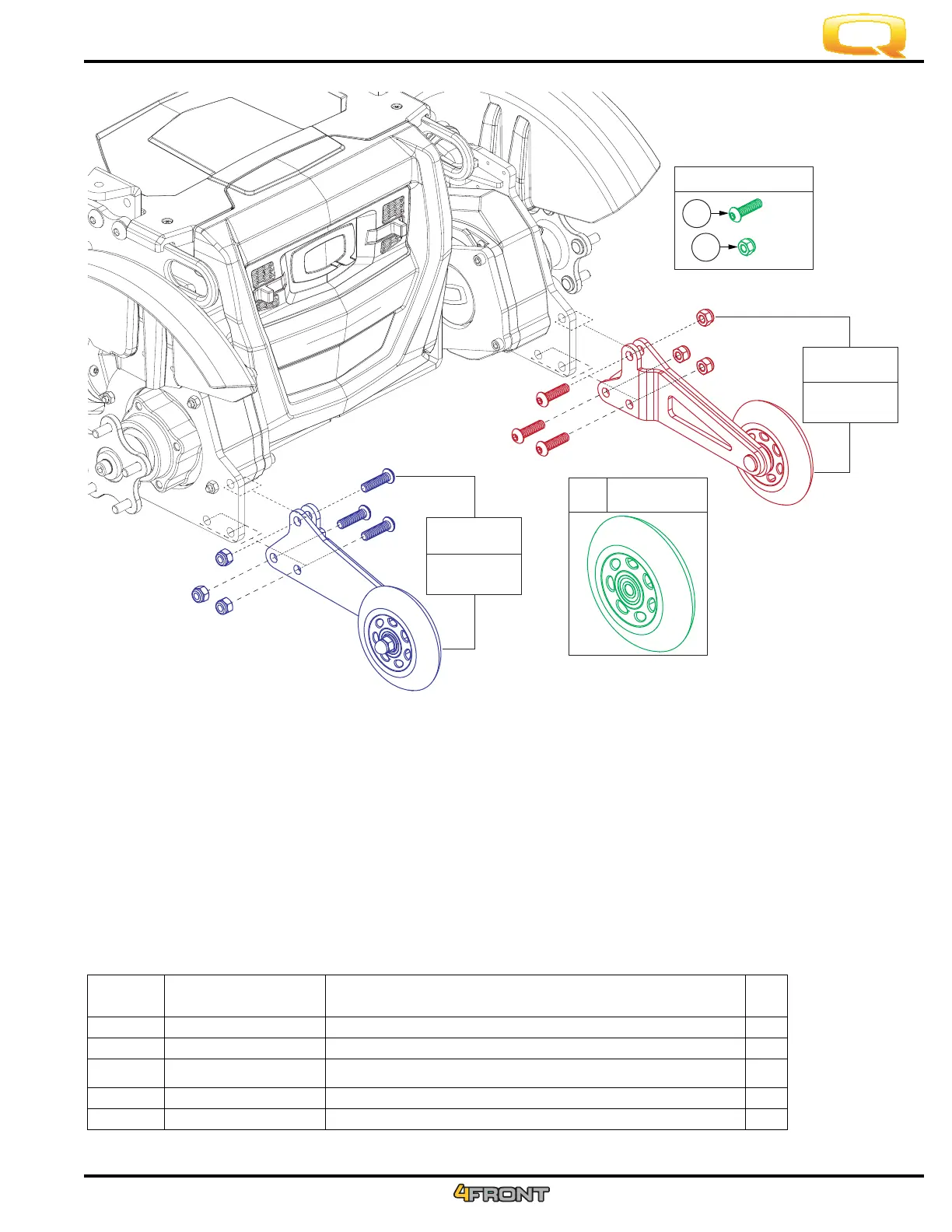

II. Anti-tip Assembly
Left Anti-tip
Assy
Anti-tip Wheel
Mounting Hardware
C1
D1
x 3
per side
A1b
Right Anti-tip
Assy
A1a
B1
A1a
A1b
B1
C1
D1
REF #
MEC1705020
MEC1705019
WHLASMB1523
SCRASBH1241
NUTNYLK1011
PART #
ANTI-TIP MOUNT ASSEMBLY, RIGHT
ANTI-TIP MOUNT ASSEMBLY, LEFT
WHEEL,ASSY,ANTI-TIP,100MM OD X 23.76MM TH,W/BEARINGS &
SPACER,C-1505-032
SCREW,BHSCS,BLACK ZINC,M8-1.25 X 30MM,GRADE 10.9
NUT, HEX, PVTP, M8X1.25, ISO 7040, CL 5, BZ
DESCRIPTION
1
1
1
3
3
QTY
