34 Rev.A/100217
Please note: Rims and hardware are included in the top-level assemblies
and are not available individually.
A1
B1
C1
Complete Tire/Rim Assembly
Pneumatic Tire
Pneumatic Tube
E1
Lug Nuts
x5
D1

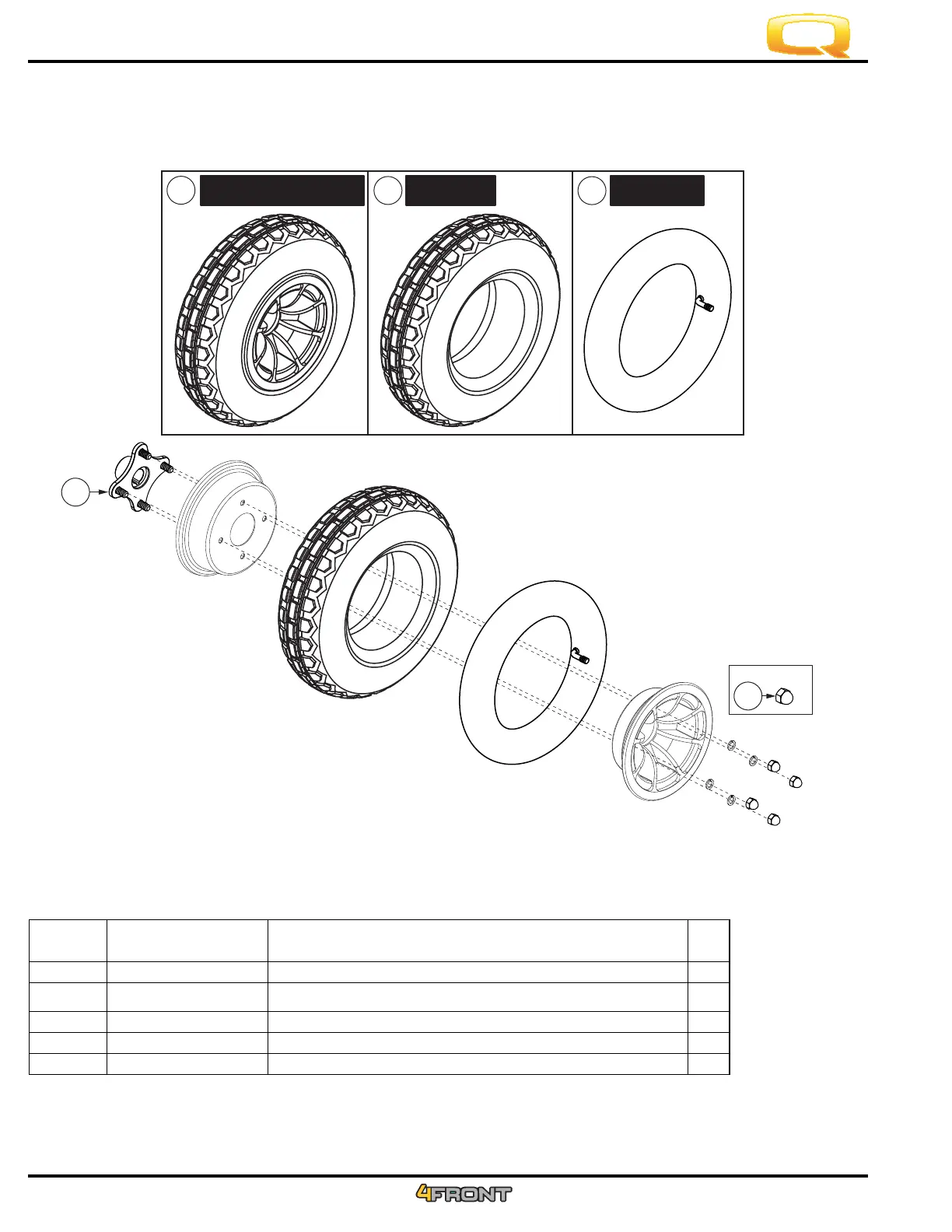

XVI. Drive Wheel Assembly — Pneumatic, 4 Spoke Black Rim/Black Tire (Knobby)
A1
B1
C1
D1
E1
REF #
WHL147599
TIR8110017
TUBSTND1043
MEC145470
NUTACRN1005
PART #
WHEEL,ASSY,PNEUMATIC,14" X 4" DRIVE,BLACK RIM/BLACK TIRE
TIRE,PNEUMATIC,BLACK,14" OD, 4" W,C166 KNOBBY
TREAD,(GALLOP: RP265087)
TIRE,TUBE,4.00-6,90 DEGREE VALVE STEM,(TAG: 163265)
HUB, W/STUDS, KNOBBY TIRE
NUT, HEX, ACORN, .375-24, GR 2, ZN
DESCRIPTION
1
1
1
1
4
QTY
