Quantum 4FRONT User Manual

28 Rev.A/100217
B1
A3
A4
PTO
Harness
Left Fender
w/Lights Assy
A2
Right Fender
w/Lights Assy
A1
Complete Fender
w/Lights Assy
A1 - A7
A6
A5
C1
C1
The fenders do not include
the mounting hardware.

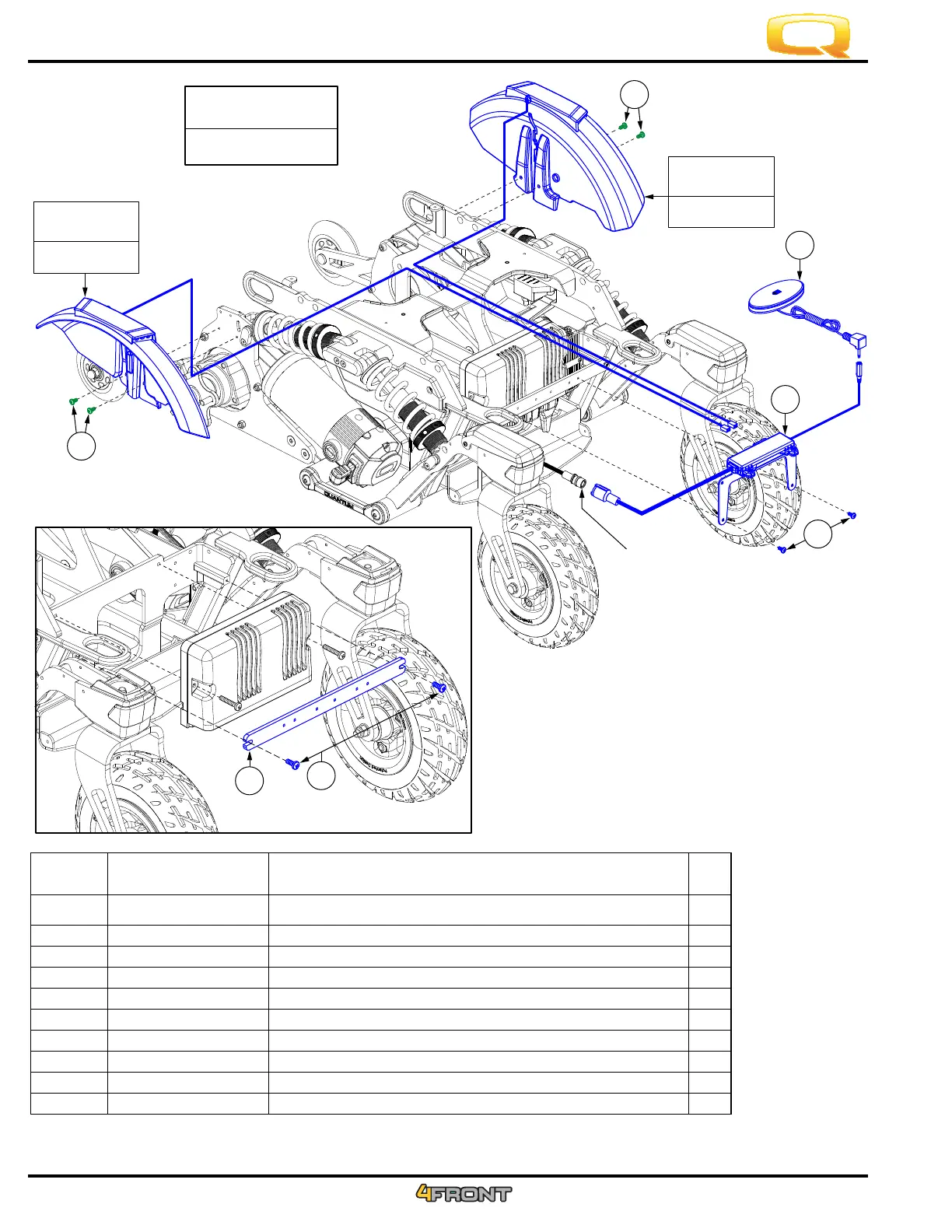

XIV. Fender Assembly — With Lights
A1 - A7
A1
A2
A3
A4
A5
A6
*A7
B1
C1
REF #
DGN1700033
DGN1700204
DGN1700203
MEC1700547
SCRPPH1036
MEC167317
SCRPPH1044
MEC1706720
ELE160183
SCRPPH1036
PART #
SHROUD,ASSY,FENDERS,W/LIGHT MODULE,SWITCH
OPERATED,BASE MOUNTED,QUANTUM 4FRONT SERIES
FENDER LIGHT ASSEMBLY, FWD, RIGHT
FENDER LIGHT ASSEMBLY, FWD, LEFT
FLM BRACKET ASSEMBLY
SCREW,PAN HEAD,TYPE H,M4X0.7 X 8,4.8,BZ
LIGHT MODULE BRACKET
SCREW,PAN HEAD,TYPE H,M4X0.7 X 12,4.8,BZ
NEOPRENE RUBBER STRIP,70A DUROMETER,ADHESIVE-BACKING
ELECTRONIC,EGG SWITCH,BLACK,LIGHT SYMBOL,W/DUAL LOCK
SCREW,PAN HEAD,TYPE H,M4X0.7 X 8,CL 4.8,BZ
DESCRIPTION
1
1
1
1
6
1
2
1
1
1
QTY
Not shown and not available as a replacement component.
Notes :
*A7

Quantum 4FRONT Specifications

General

Drive Type	Mid-Wheel Drive
Weight Capacity	300 lbs
Foldable	No
Tire Type	Solid
Ground Clearance	3 inches
Rear Casters	6 inches
Battery Charger	8A Off-board
Seat Width	16-22 inches
Seat Depth	16-20 inches
Maximum Speed	Up to 6 mph
