Quantum DXi4700 Upgrade Guide

Installing Components in the Node
Quantum DXi4700 Capacity Upgrade Guide 27
DXi4700
Configuration
Total System
Memory
Actions to Take
117 - 135 TB 128 GB 1. Remove the pre-installed modules in slots A1–A4 and B1–B4
(white sockets).
2. Install 8 x 8 GB memory modules in slots A1-A4 and B1-B4 (white
sockets).
3. Install 8 x 4 GB memory modules in slots A5–A8 and B5–B8 (black
sockets).
4. Install 8 x 4 GB memory modules in slots A9–A12 and B9–B12
(green sockets).

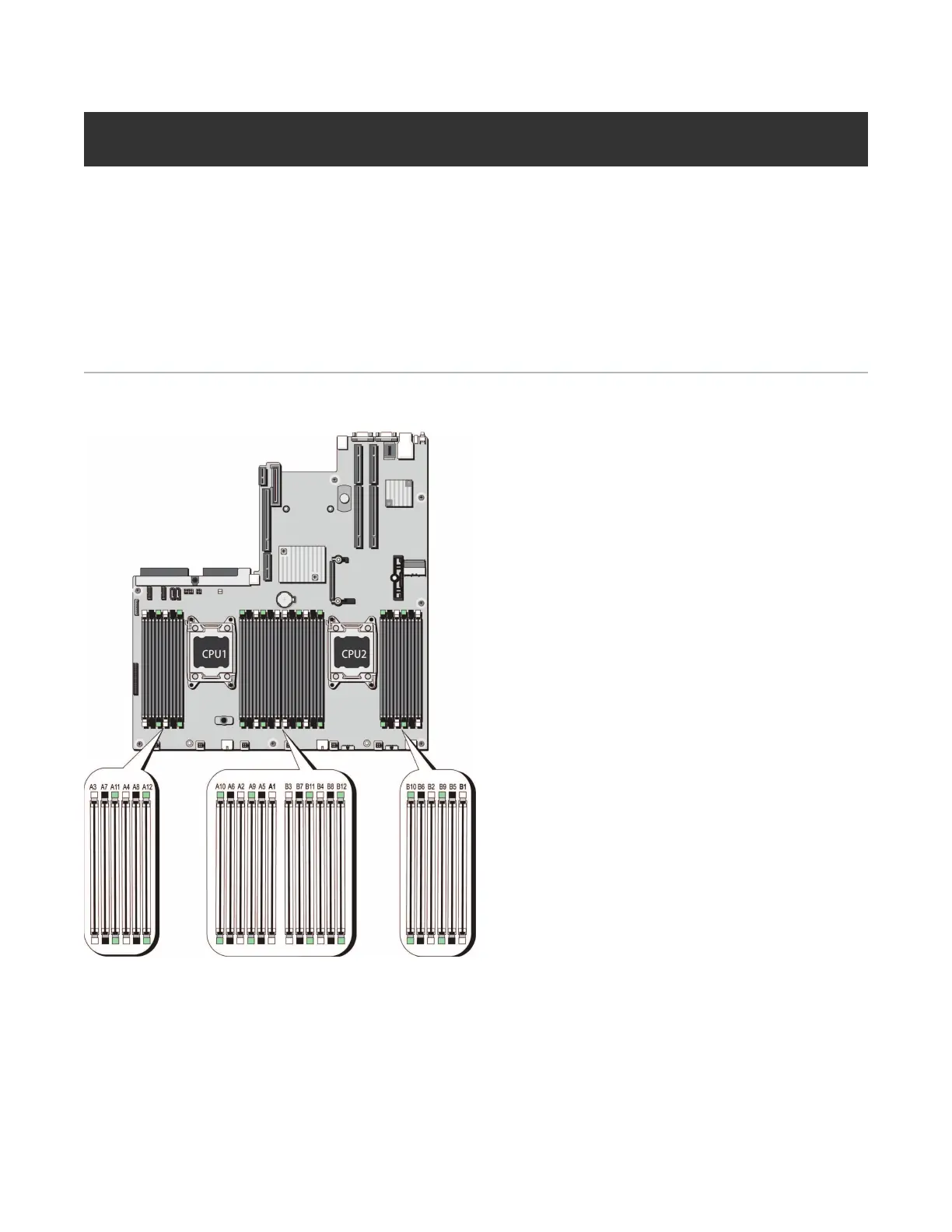

Figure 17: Node Memory Module Locations
To install the memory modules in the DXi4700 Node:
