Installing Components in the Node
Quantum DXi4700 Capacity Upgrade Guide 31

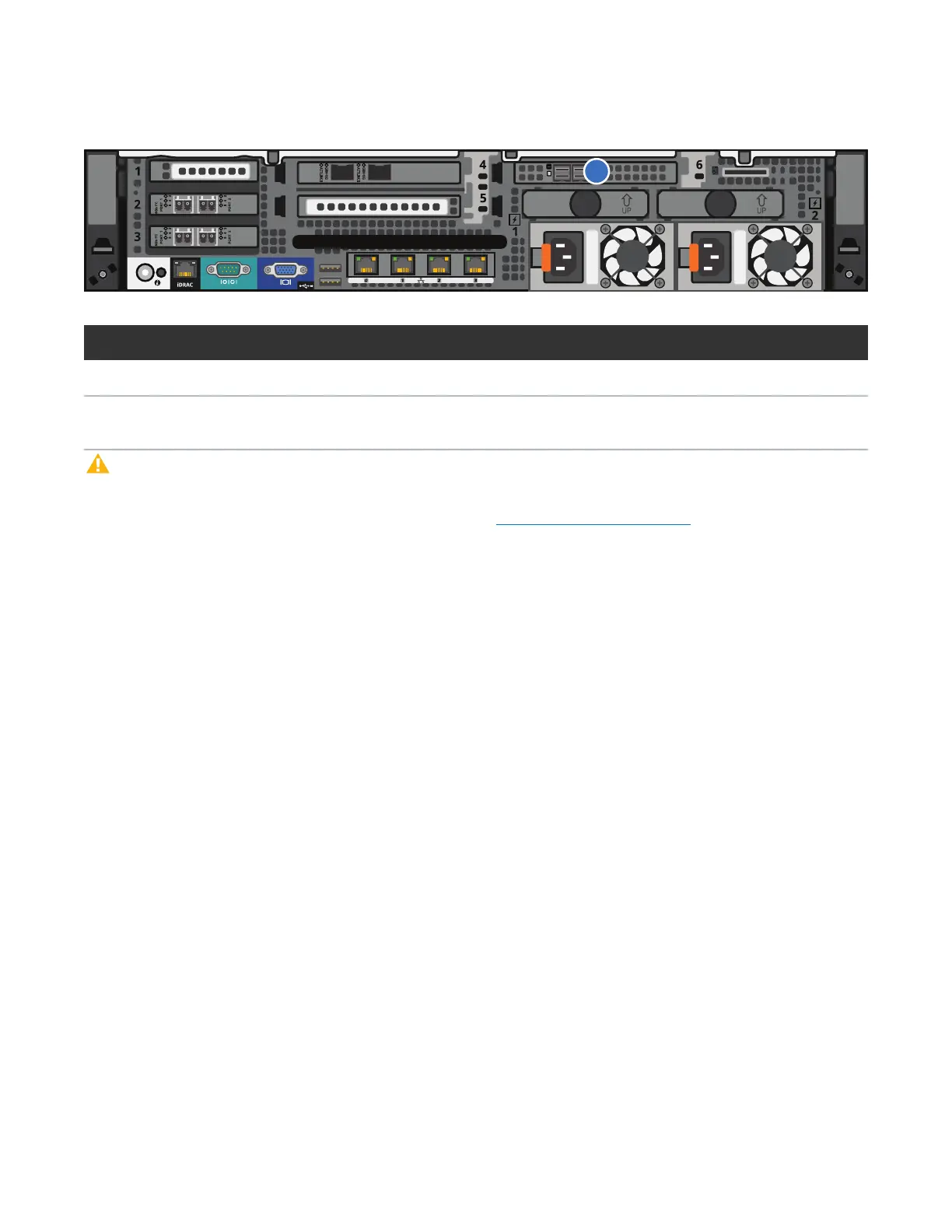

Figure 22: DXi4700 G2 H830 RAID Controller Card Location
Item Card Option(s)
1 H830 RAID controller card
To install the H810 or H830 RAID controller card in the DXi4700 Node:
Caution: Use appropriate ESD precautions, including the use of a grounding strap, when performing
this procedure.
1. Lift the blue expansion card latch out of the slot (see Figure 23 on the next page).
The expansion card latch is located to the right of PCIe slot 6 as you face the rear of the Node. The latch
will remain attached to the system.
To Next Page
