Installing Components in the Node
Quantum DXi4700 Capacity Upgrade Guide 30
Note: For proper seating of the cooling shroud in the chassis, ensure that the cables inside
the system are routed along the chassis
Installing the H810/H830 RAID Controller
The PERC H810 RAID controller (DXi4700 G1) or PERC H830 RAID controller (DXi4700 G2) allows you
to connect up to three Expansion modules to the DXi4700 Node (see Table 4 below). If required for the
upgrade, install the H810/H30 RAID controller card in PCIe slot 6, located in expansion card riser 3 (see
Figure 21 below for DXi4700 G1 and Figure 22 on the next page for DXi4700 G2).
Table 4: DXi4700 RAID Controller Configurations
DXi4700 Configurations Expansion Modules RAID Controllers
5 TB
11 TB
19 TB
27 TB
0 l None
45 TB
63 TB
1 l H810 RAID controller card in PCIe slot 6 (DXi4700
G1)
l H830 RADI controller card in PCIe slot 6 (DXi4700
G2)
81 TB
99 TB
2
117 TB
135 TB
3

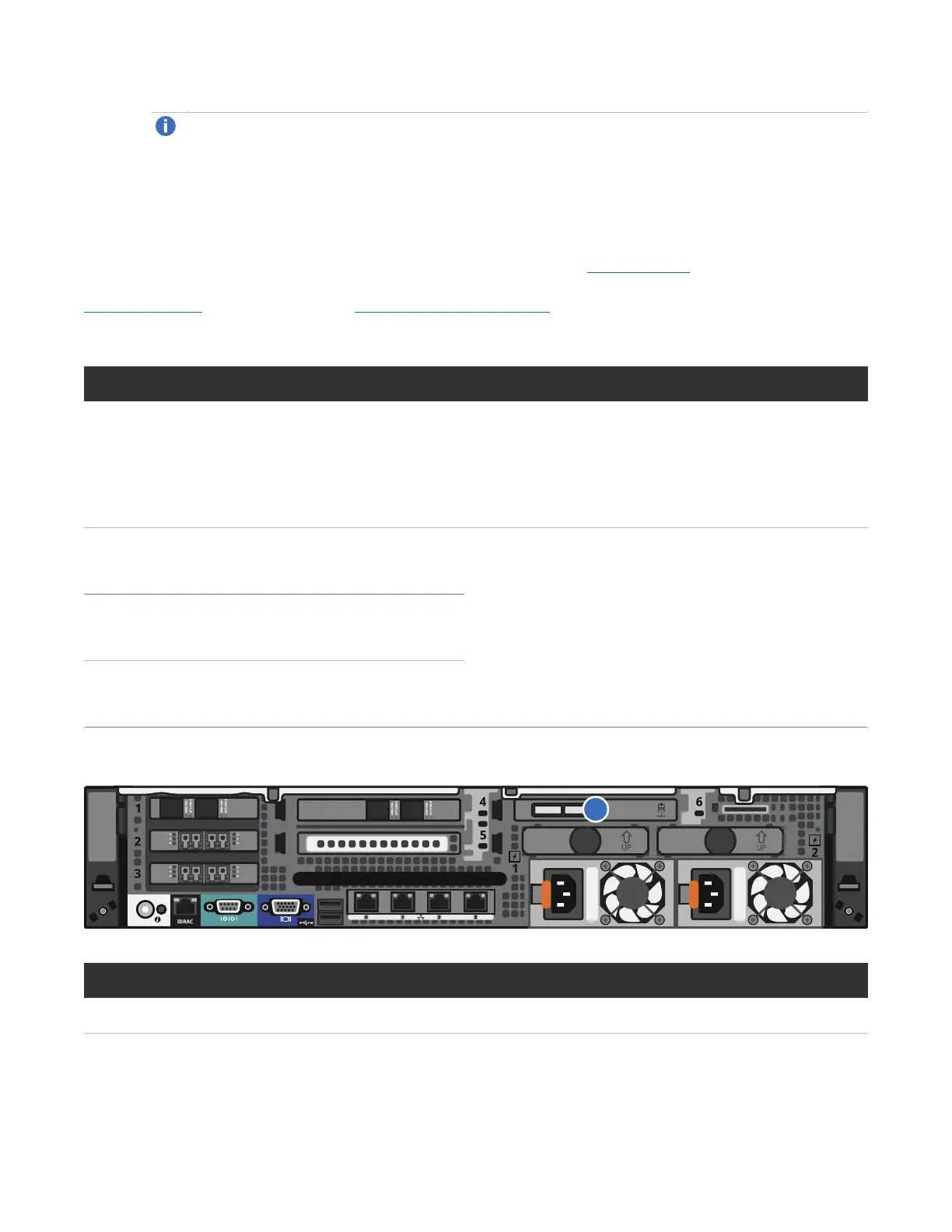

Figure 21: DXi4700 G1 H830 RAID Controller Card Location
1
Item Card Option(s)
1 H810 RAID controller card
