Installing Components in the Node
Quantum DXi4700 Capacity Upgrade Guide 32

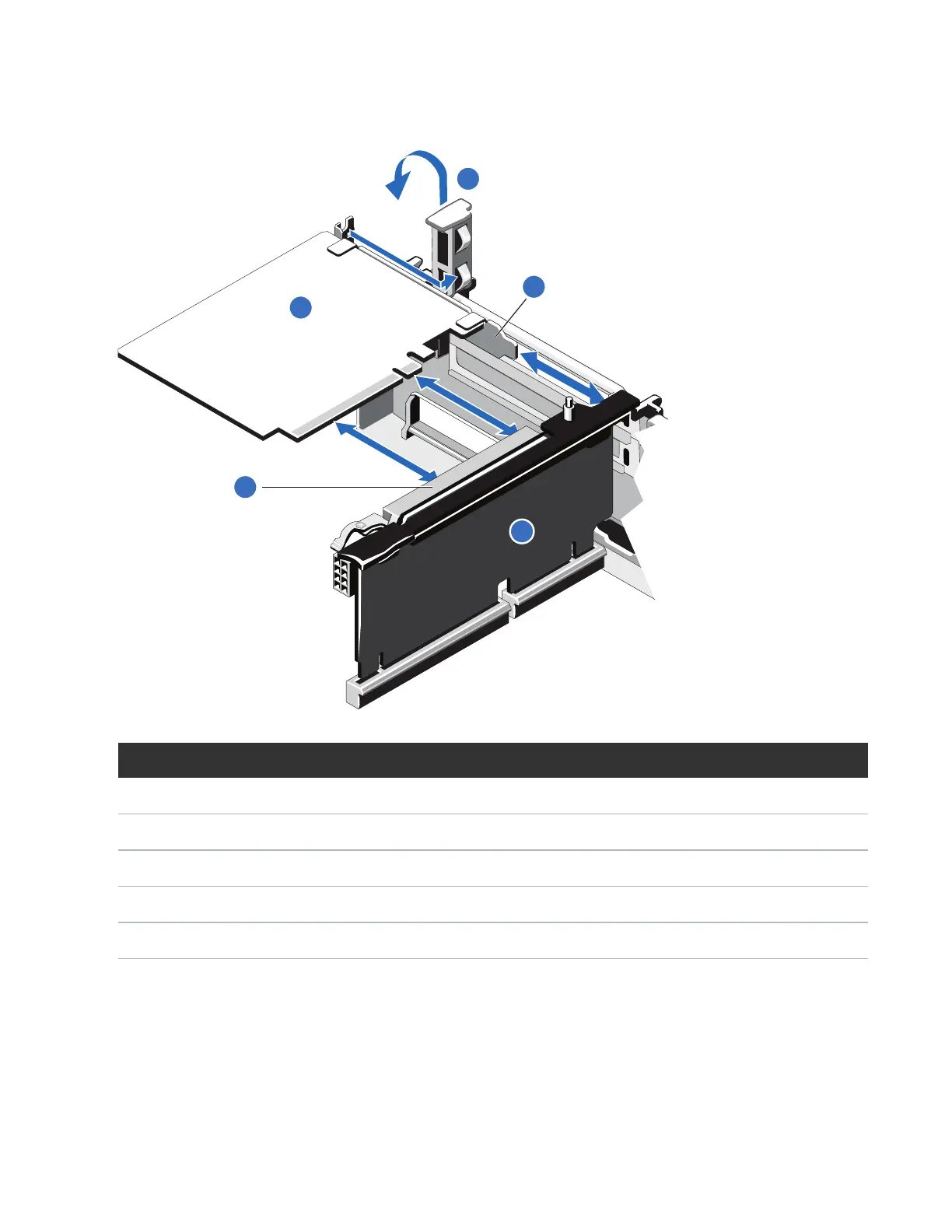

Figure 23: Installing the H810/H830 Card in Riser 3
1
2
3
4
5
Item Description
1 Expansion card latch (blue)
2 H810/H830 card
3 Metal slot cover
4 Expansion card connector
5 Expansion card riser 3
2. Remove the metal slot cover from slot 6 by sliding it out of the slot.
3. Holding the H810 or H830 card by its edges, position the card so that the connector on the card aligns
