Quantum DXi4700 Upgrade Guide

Installing Components in the Node
Quantum DXi4700 Capacity Upgrade Guide 33
with the expansion card connector on the riser.
4. Insert the card-edge connector firmly into the expansion card connector until the card is fully seated.
5. Push the expansion card latch down to lock the H810 or H830 card in place.
Closing the Node Cover
To close the DXi4700 Node cover:
1. Lift the latch on the cover (see Figure 24 below).

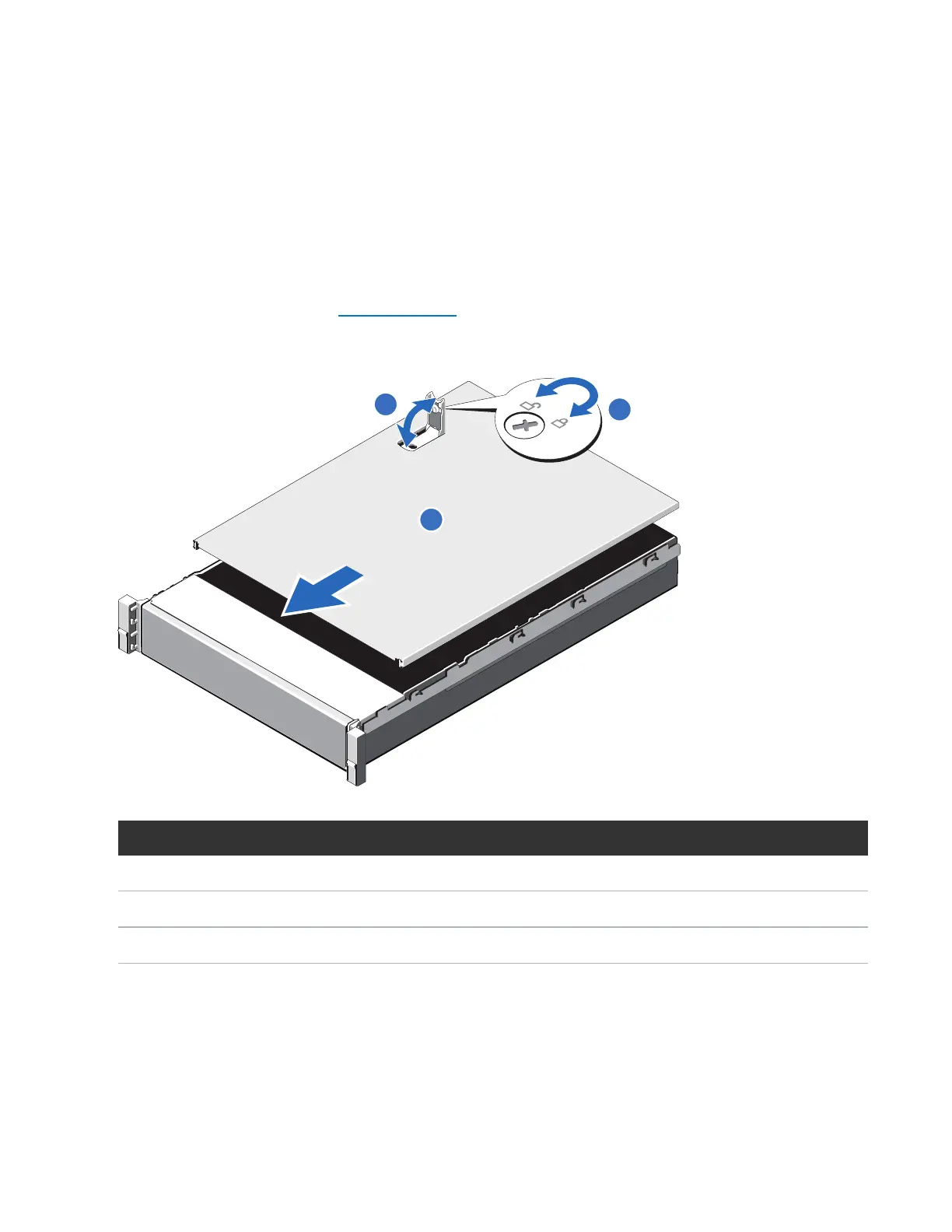

Figure 24: Replacing the Node Cover
1
2
3
Item Description
1 Latch release lock
2 Latch
3 Node cover
2. Place the cover onto the Node chassis and offset the cover slightly back so that it clears the chassis
hooks and lays flush on the chassis.
3. Push down the latch to move the cover into the closed position.
4. Rotate the latch release lock in a clockwise direction to secure the cover.
