Installing the DXi6701 or DXi6702 System 13
DXi6701/DXi6702

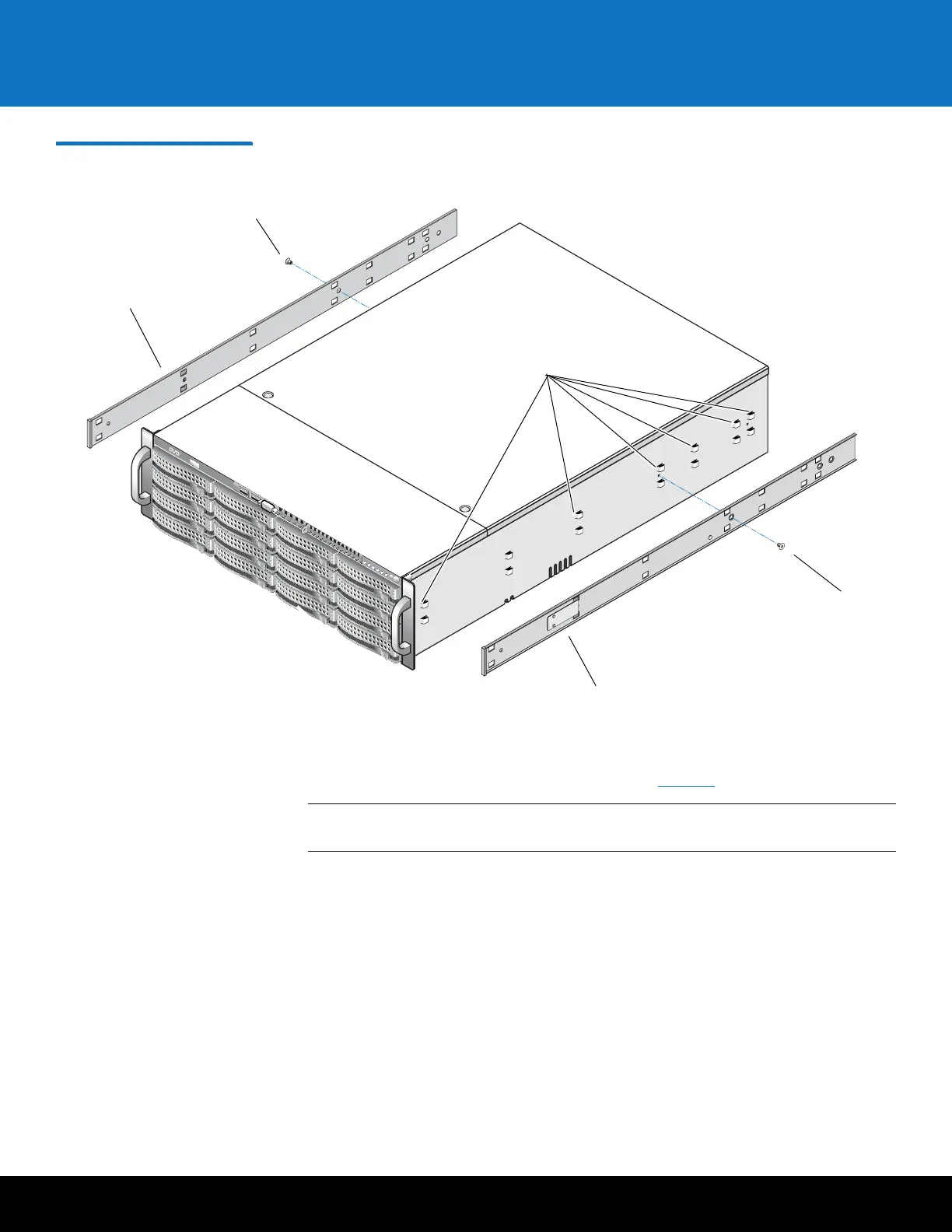

Figure 6 Installing the Internal
Chassis Rails (Node)
3 Install the rack mounting rails into the rack and secure them by engaging the rail
tabs into the hole pattern of the rack rails. If the rack rails have round holes, use the
adapter bracket provided in the accessory kit (see
Figure 7).
Note: The rack mounting rails extend to support rack depths from 26.5 to 36.4
inches (67.3 to 92.5 cm).
Internal chassis rail
Internal chassis rail
Chassis tabs
Phillips screw
Phillips screw
