Chapter 2: Introduction
Front Panel of the Drive
QuantumLTO-8 HH SAS User’s Guide 13
Front Panel of the Drive

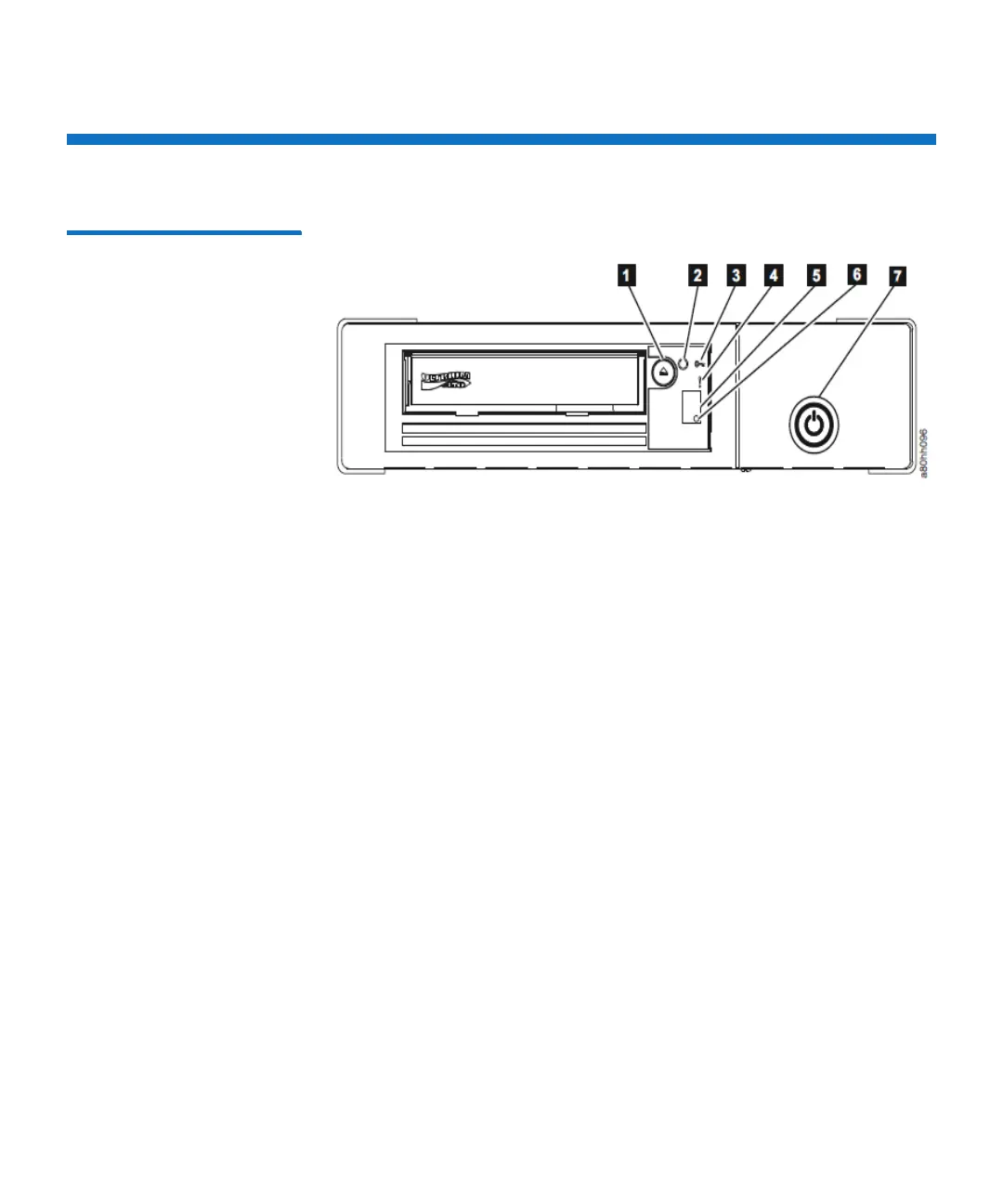

Figure 3 Front panel
element descriptions
1 Car
tridge unload button
2 Ready light (green)
3 Encryption light (white)
4 Fault light (amber)
5 Single Character Display (SCD)
6 SCD dot
7 Drive power button
