GV65 Plus User Manual
TRACGV65PUM001 - 9 -

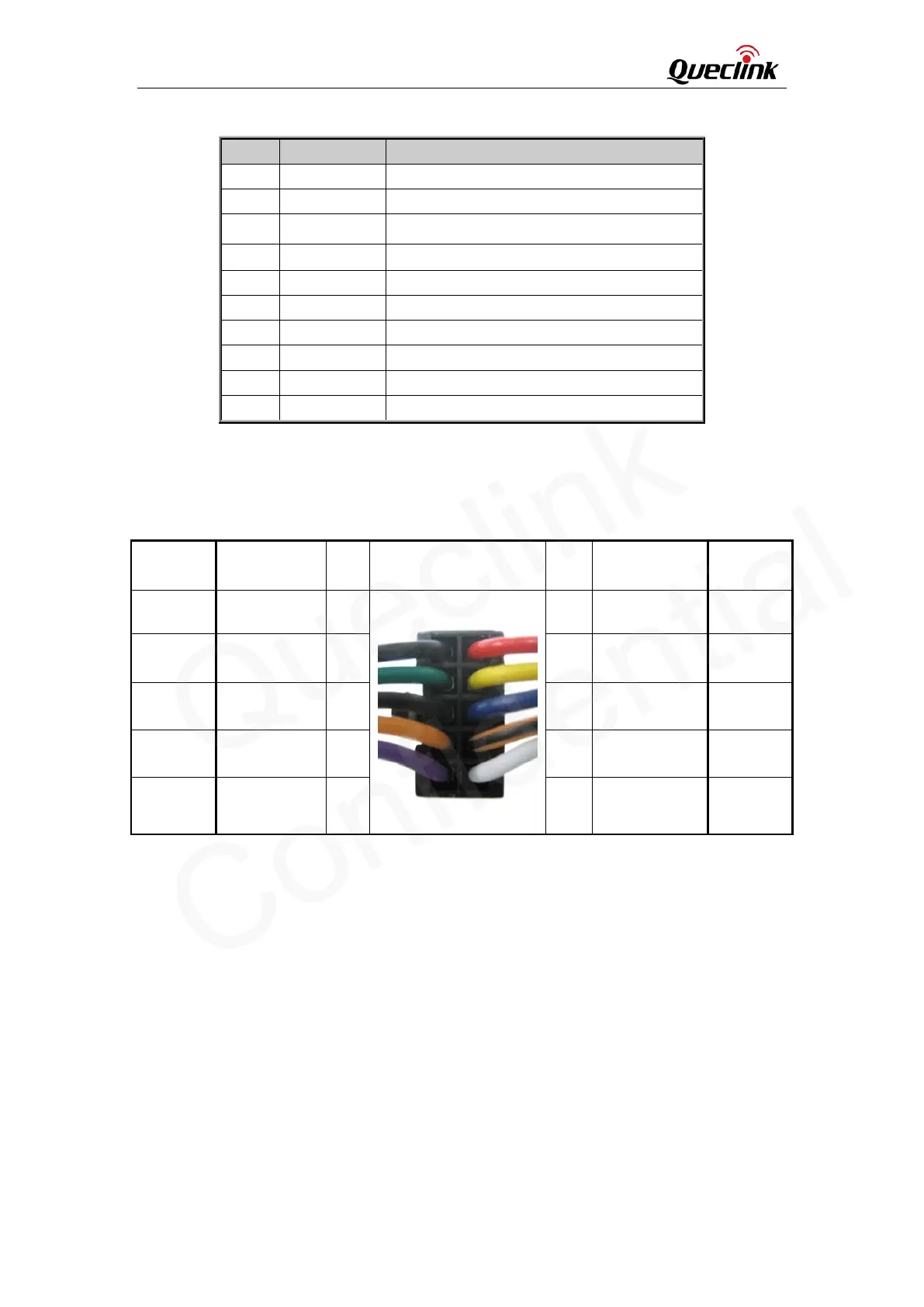

Table 4. Description of 10 PIN Connections
Index Description Comment
1
VIN External DC power input, 8-32V
2
GND GND
3
OUT2 Open drain, 150 mA max
4
ADC_IN Fuel ADC input
5
OUT1 Open drain, 150 mA max ,with latch circuit
6
DATA_1W 1-wire data bus
7
/IN2 Digital input, negative trigger
8
/IN1 Digital input, negative trigger
9
IGN Ignition input, positive trigger
10
VDD_1W 1-wire device power output
Table 5. GV65 Plus User Cable Colour Definition
Definition
Colour
PIN
No.
Cable
PIN
No.
Colour
Definition
GND Black 2
1 Red VIN
ADC_IN Green 4 3 Yellow OUT2
DATA_1W White/Black 6 5 Blue OUT1
/IN1 Orange 8 7 Orange/Black /IN2
VDD_1W Purple 10 9 White IGN
