GV65 Plus User Manual
TRACGV65PUM001 - 8 -

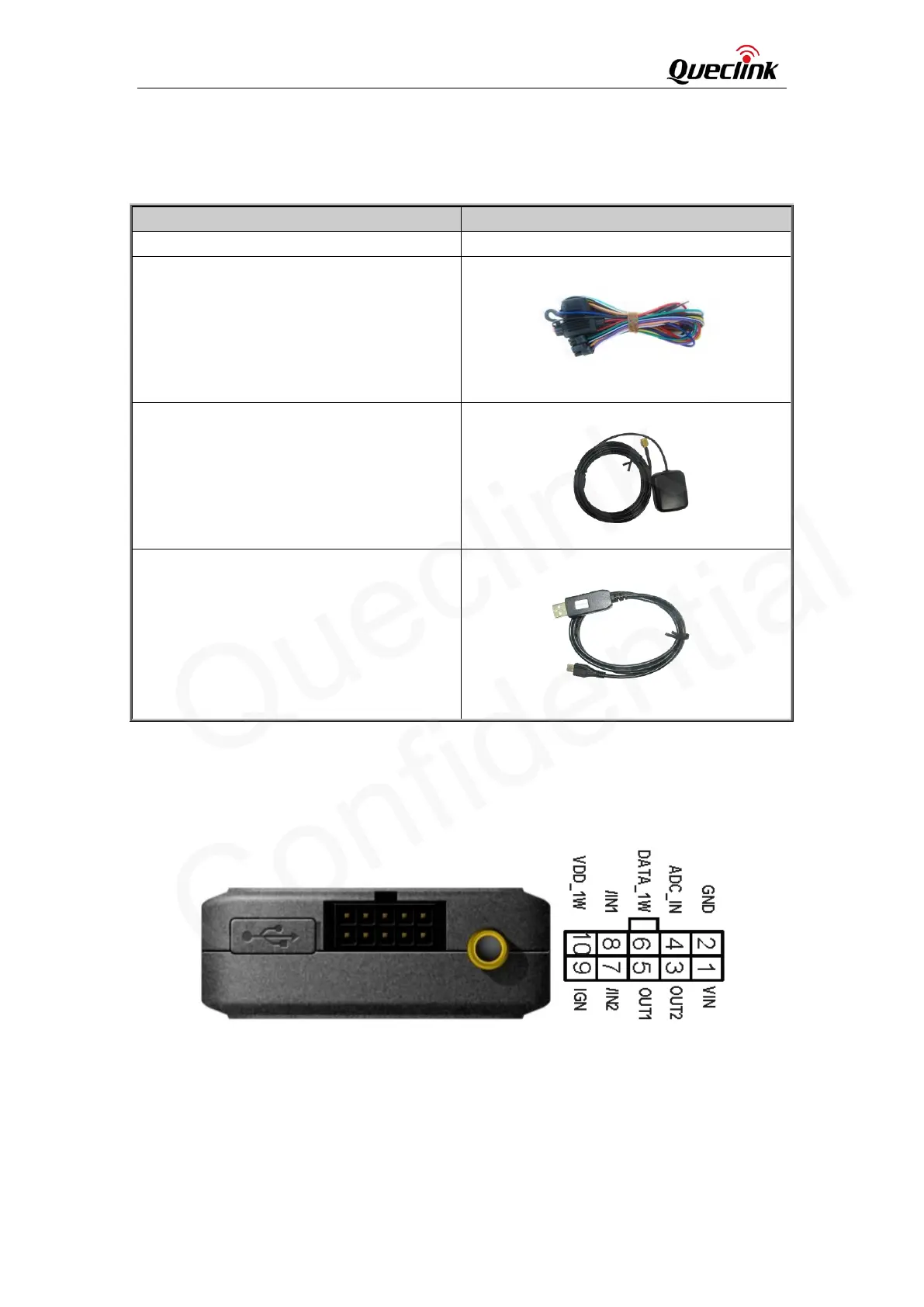

Table 3. Parts List
Name Picture
GV65 Plus Locator 73mm*54mm*22.7mm
User Cable
GPS Antenna (Optional)
DATA_CABLE_M (Optional)
The GV65 Plus has a 10 PIN interface connector. It contains the connections for power, I/O, etc.
The sequence and definition of the 10PIN connector are shown in the following figure:
Figure 2. The 10 PIN Connector on the GV65 Plus
2.2. Parts List
2.3. Interface Definition
To Next Page
