NB-IoT Module Series
BC66 Hardware Design
BC66_Hardware_Design 23 / 59
Turn on pulse
PWRKEY
4.7K
47K

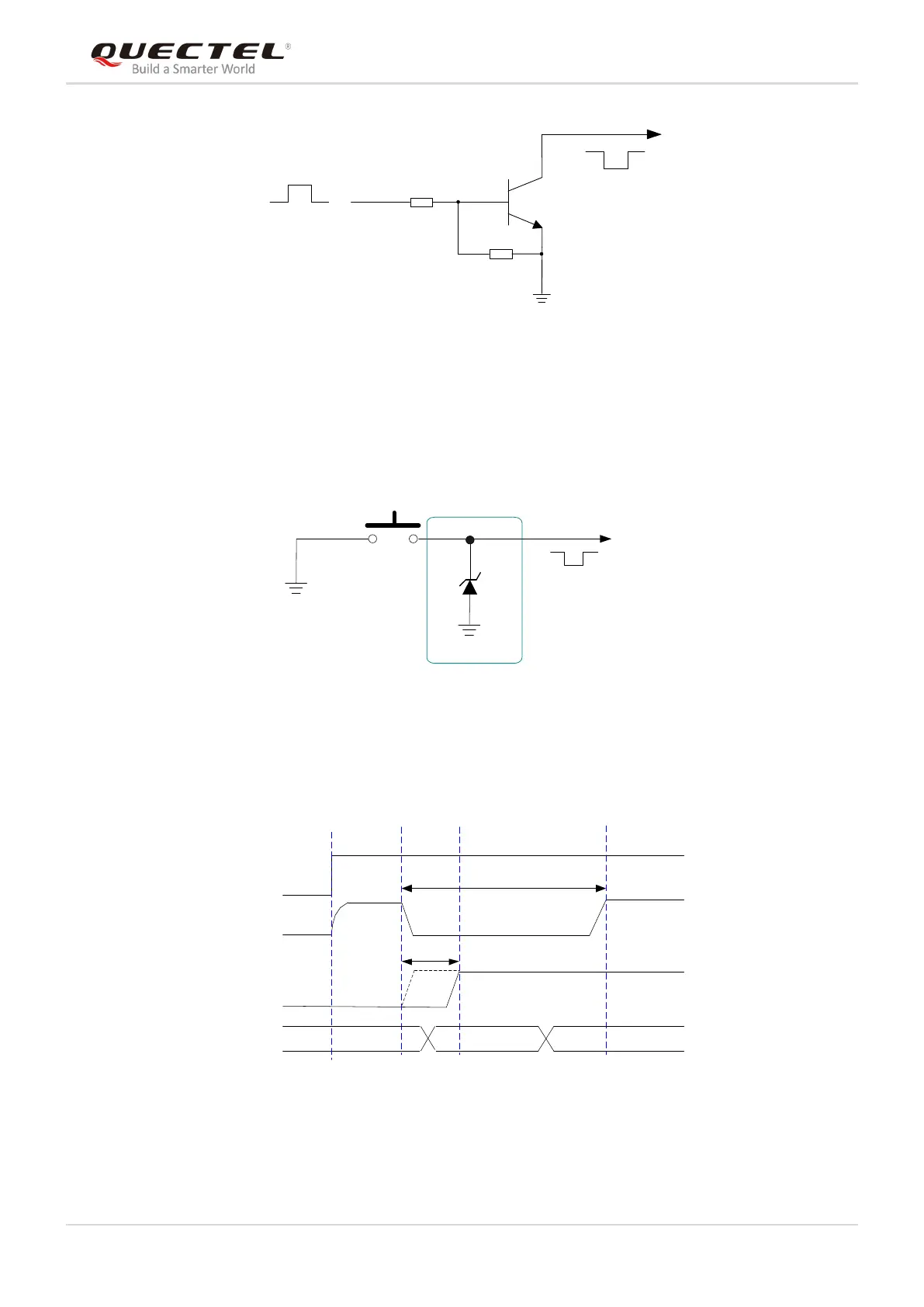

Figure 6: Turn on the Module Using Driving Circuit
Another way to control the PWRKEY is using a button directly. When pressing the key, electrostatic strike
may generate from the finger. Therefore, a TVS component is indispensable to be placed nearby the
button for ESD protection. A reference circuit is shown in the following figure.
Figure 7: Turn on the Module Using Keystroke
The power up timing is illustrated in the following figure.
PWRKEY
VDD_EXT
42ms
≥500ms
VBAT
Module
Status
OFF RUNNINGBOOTING
Figure 8: Power up Timing
