6.3. Top and Bottom Views

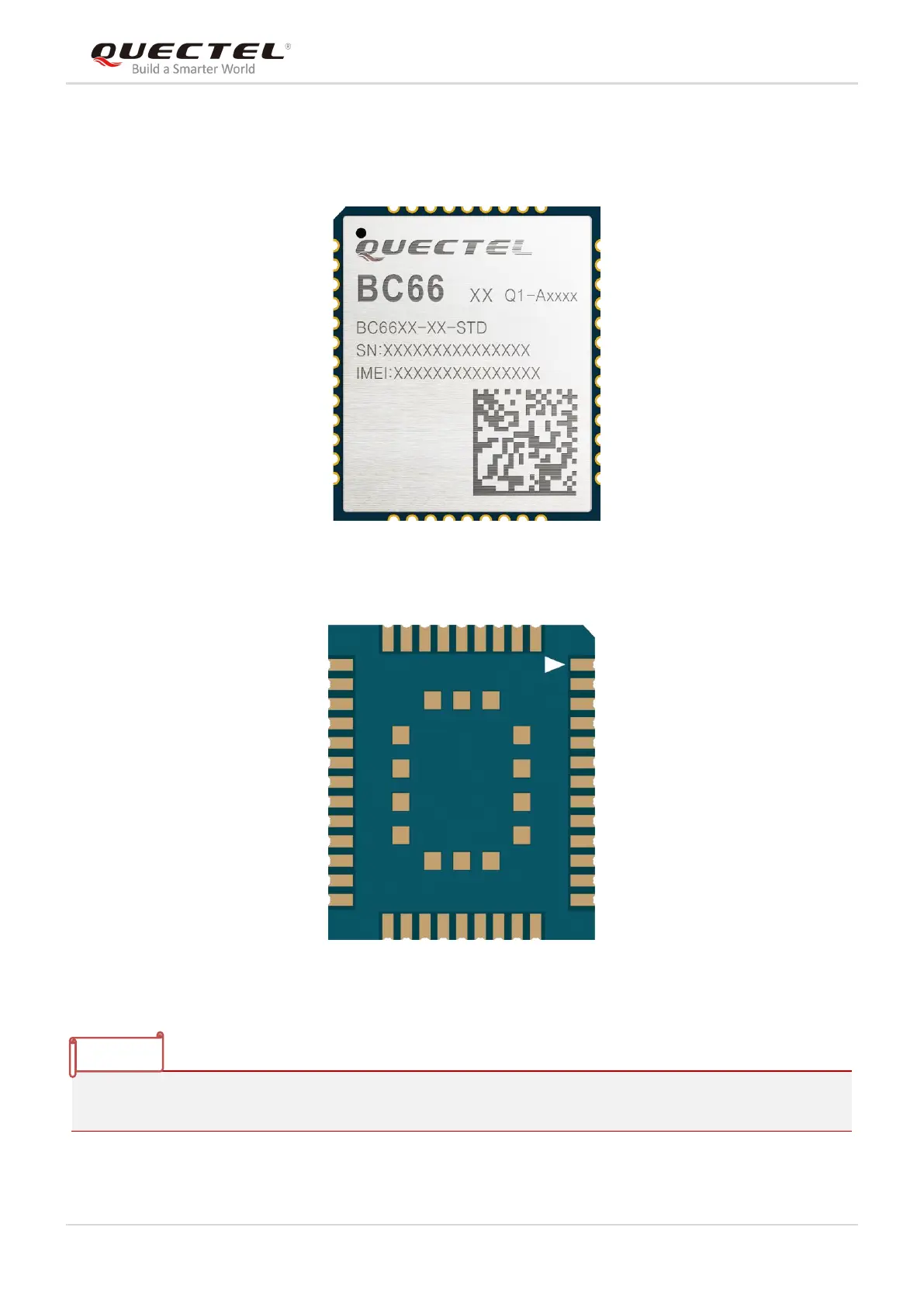

Figure 32: Top View of the Module
Figure 33: Bottom View of the Module
These are renderings of BC66 module. For authentic appearance, please refer to the module that you
receive from Quectel.
