6 Mechanical Dimensions
This chapter describes the mechanical dimensions of the module. All dimensions are measured in
millimeter (mm), and the dimensional tolerances are ±0.05mm unless otherwise specified.
6.1. Mechanical Dimensions

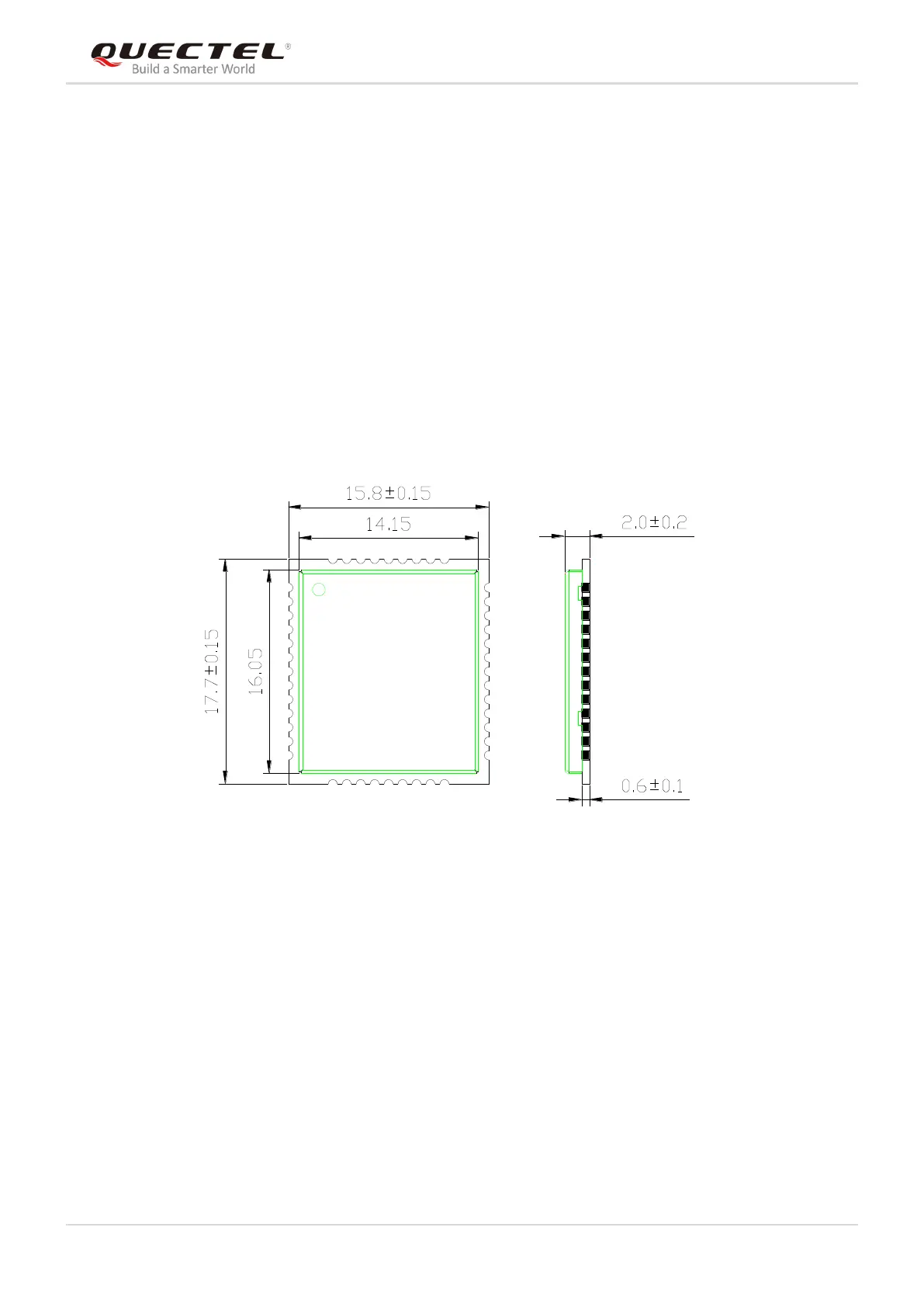

Figure 31: BC66 Top and Side Dimensions (Unit: mm)
Pin 1
