3.2. Pin Assignment

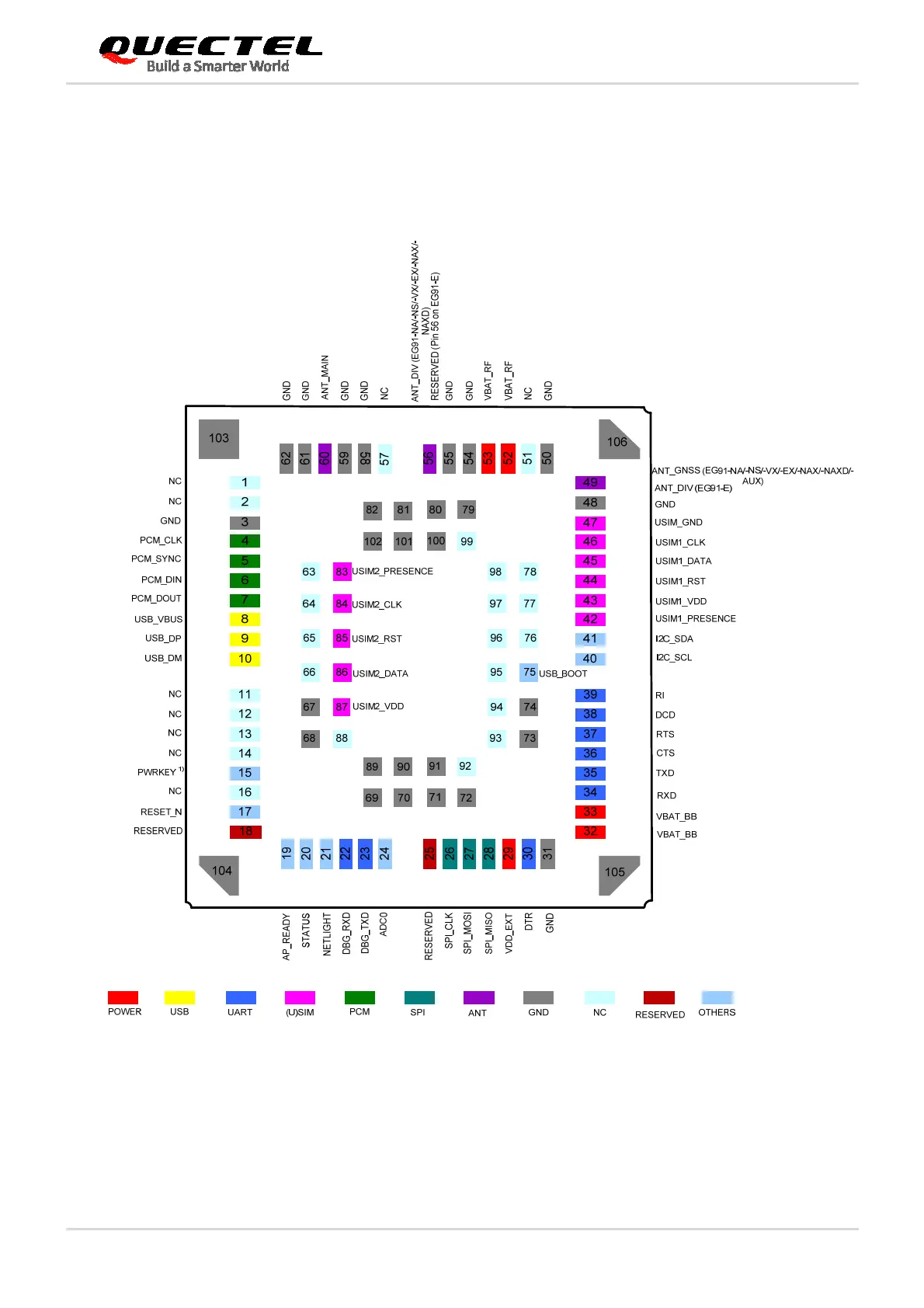

The following figure shows the pin assignment of EG91 series module.
Figure 2: Pin Assignment (Top View)
