EM06_Series_Hardware_Design 27 / 69
3.5.2. Turn Off the Module
3.5.2.1. Turn Off through FULL_CARD_POWER_OFF#
Driving the FULL_CARD_POWER_OFF# pin to low level will turn off the module.
The power-off scenario is illustrated in the following figure.

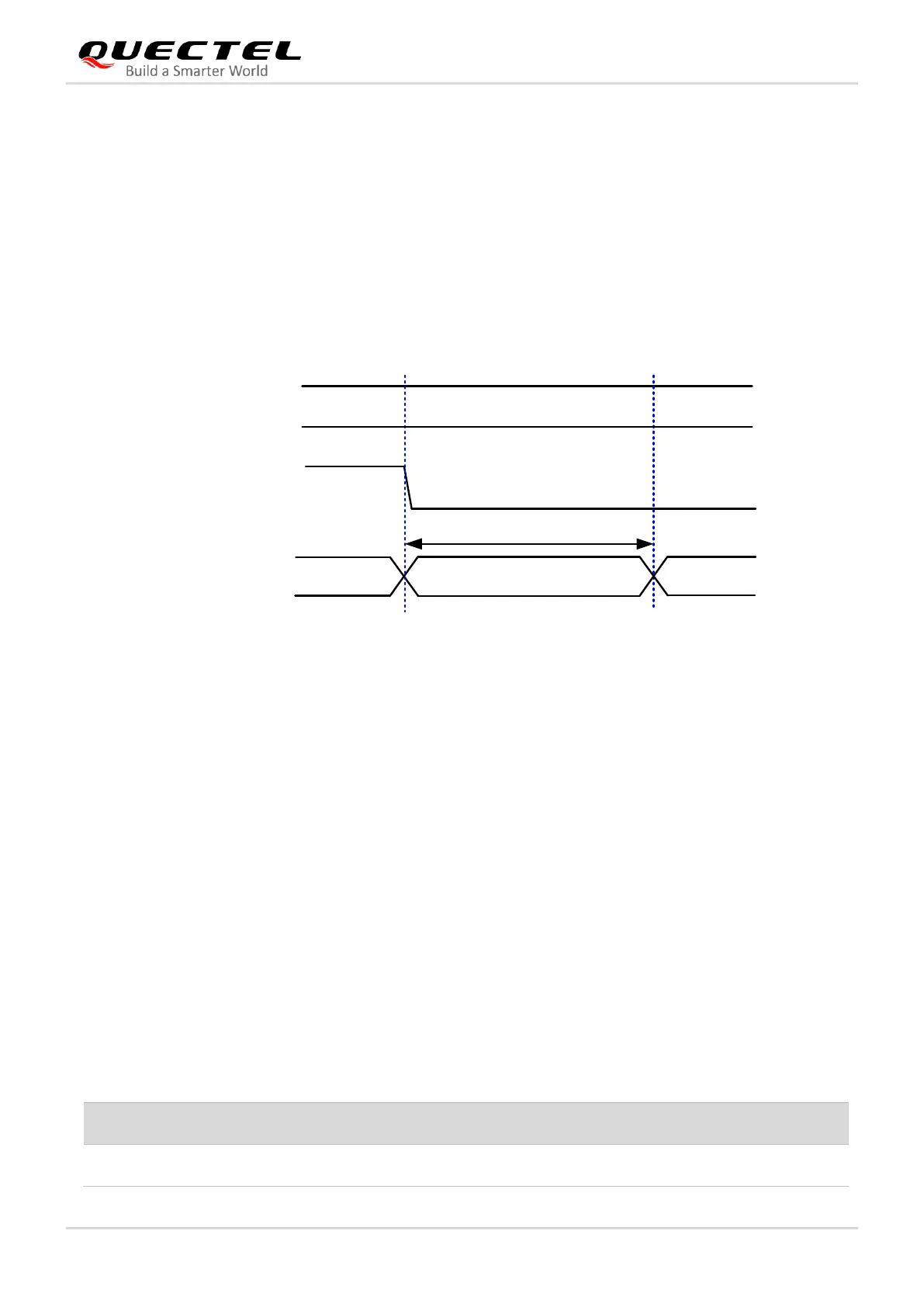

Figure 9: Timing of Turning off the Module Through FULL_CARD_POWER_OFF#
3.5.2.2. Turn Off via AT Command
The module can also be turned off by executing AT+QPOWD command. For more details about the
command, see document [2].
3.6. Reset the Module
The RESET# pin is for resetting the module by being driven to a low voltage level for 250–600 ms.
Table 8: Pin Definition of RESET#
