Quectel LTE-A Series User Manual

LTE-A Module Series
EG060V-EA Hardware Design
EG060V-EA_Hardware_Design 58 / 82
4.1.3. Reference Design of RF Antenna Interface
A reference design of ANT_MAIN and ANT_DRX antenna interface is shown below. It should reserve a
π-type matching circuit for better RF performance. The capacitors are not mounted by default.
ANT_MAIN
R1 0R
C1
Module
Main
Antenna
NM
C2
NM
R2 0R
C3
Diversity
Antenna
NM
C4
NM
ANT_DRX

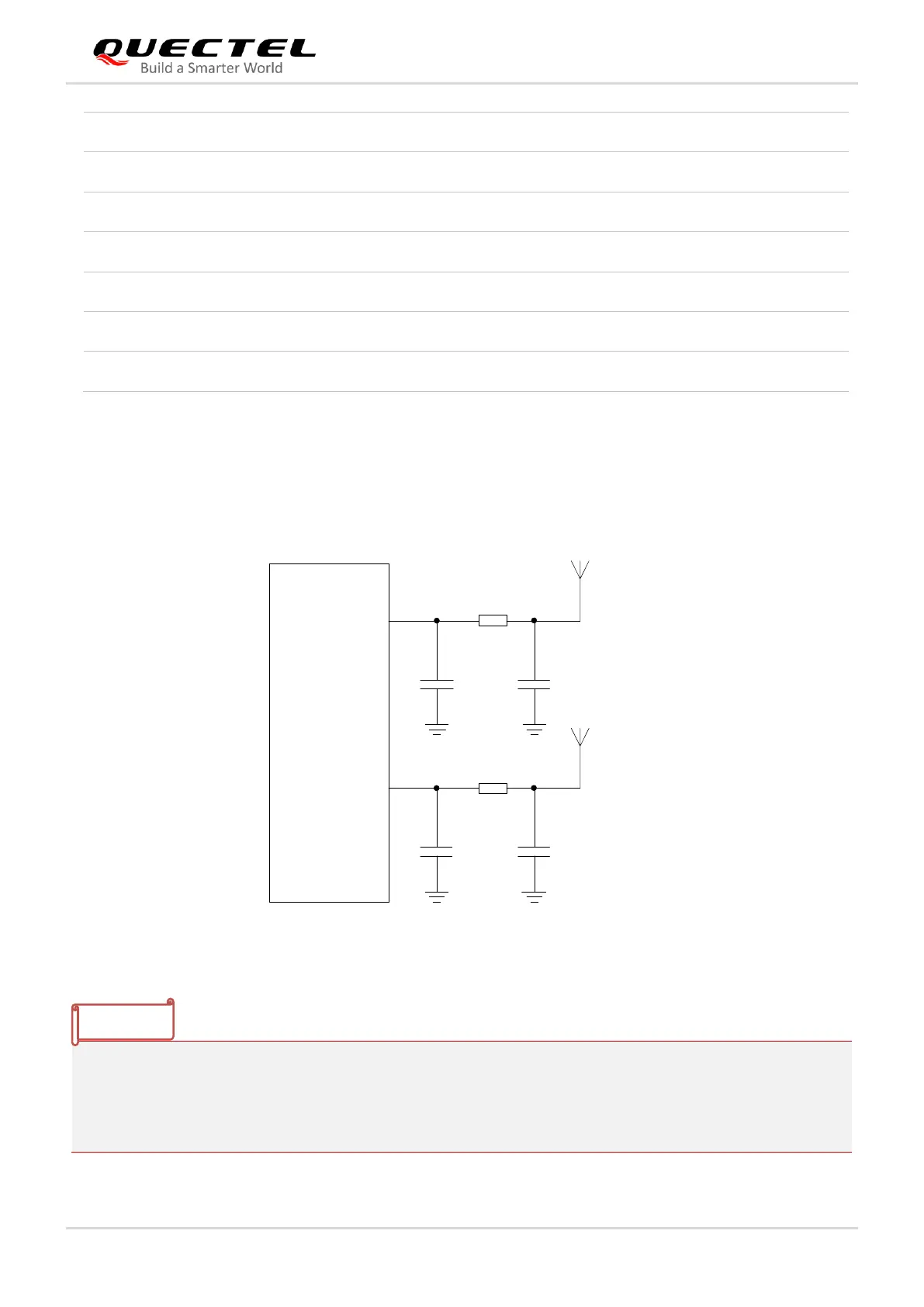

Figure 31: Reference Design of RF Antenna Interface
1. Keep a proper distance between the main and the Rx-diversity antenna to improve the receiving
sensitivity.
2. Place the π-type matching components (R1/C1/C2 and R2/C3/C4) as close to the antenna as
possible.
LTE B7
2500–2570
2620–2690
MHz
LTE B8
880–915
925–960
MHz
LTE B20
832–862
791–821
MHz
LTE B28
703–748
758–803
MHz
LTE B38
2570–2620
2570–2620
MHz
LTE B40
2300–2400
2300–2400
MHz
LTE B41
2496–2690
2496–2690
MHz
NOTES
