LTE-A Module Series
EG060V-EA Hardware Design
EG060V-EA_Hardware_Design 62 / 82
U.FL-LP connector series listed in the following figure can be used to match the U.FL-R-SMT.

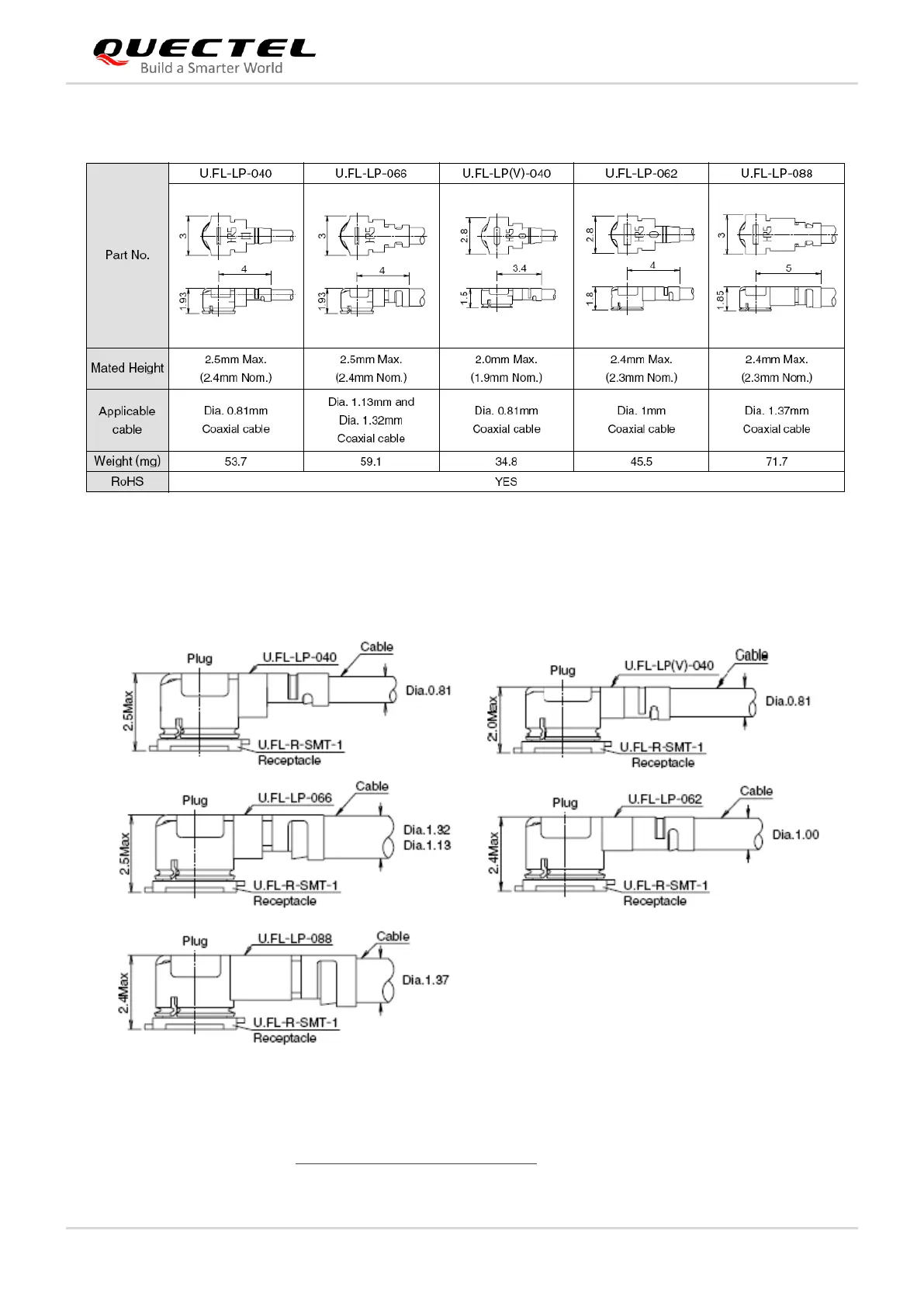

Figure 37: Mechanical Features of U.FL-LP Connectors
The following figure illustrates the space factor of mated connectors.
Figure 38: Form Factor of Mated Connectors (Unit: mm)
For more details, please visit https://www.hirose.com/?lang=en.
