LTE-A Module Series
EG060V-EA Hardware Design
EG060V-EA_Hardware_Design 73 / 82

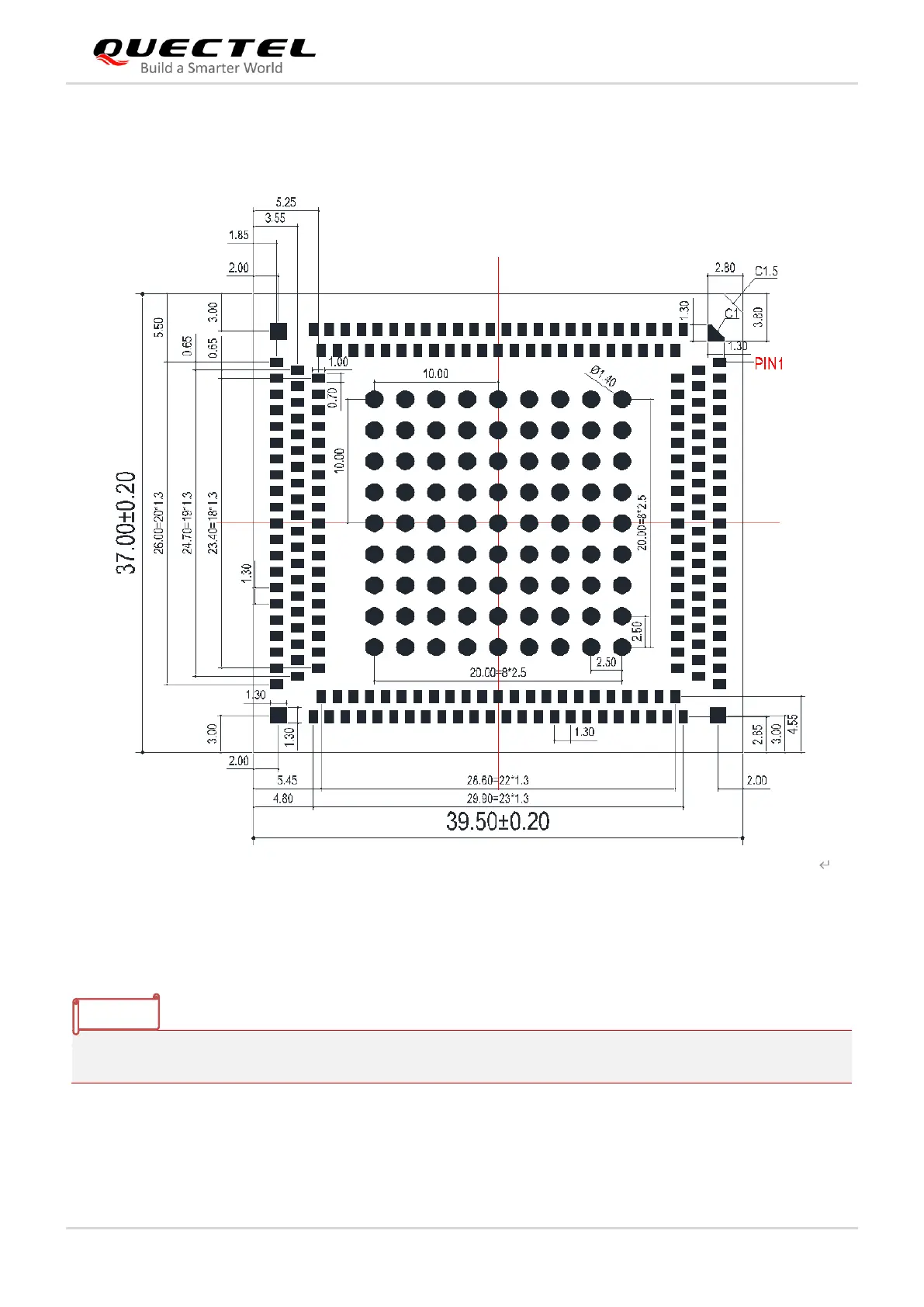

Figure 42: Bottom Dimensions (Bottom View) of the Module
The package warpage level of the module conforms to JEITA ED-7306 standard.
NOTE
