Quectel RG50-Q Series User Manual

5G/LTE-A Module Series
5G EVB User Guide
5G_EVB_User_Guide 12 / 38
J0901
EARPHONE
J2002
USIM2
card
SD
card
J1301
MAIN_UART
J0303
5V/3A
J1402
J0801
SPK
ADAPTER
J2003
DBG_UART

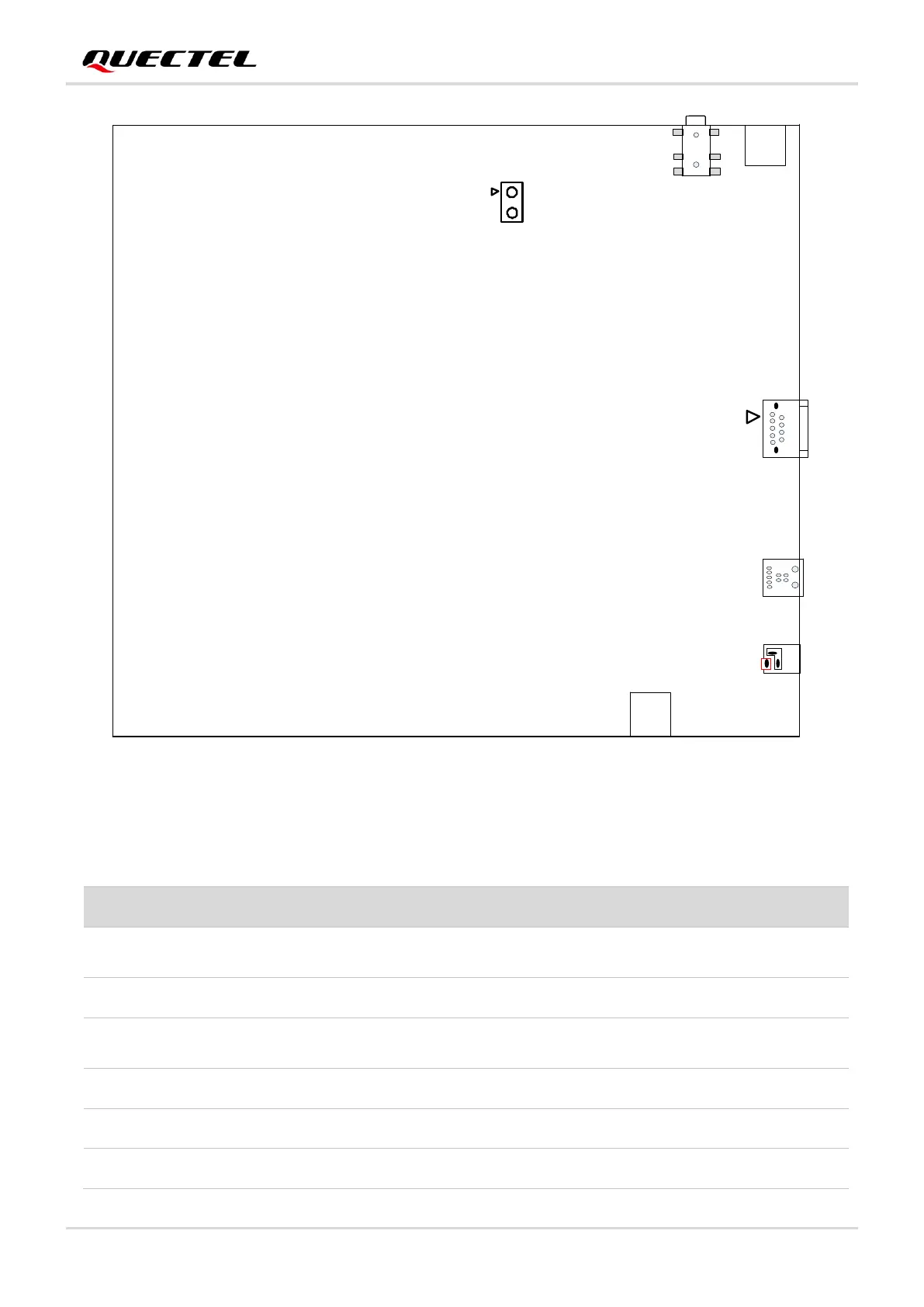

Figure 2: Bottom View for Component Placement of the EVB
Table 3: Components & Interfaces of 5G EVB
Interface
Reference Designator
Description
Power Supply
J0303
The power jack on the EVB
Typical supply voltage: +5 V/ 3 A
Power Switch
S0301
VBAT ON/OFF control
PWRKEY
S0202
Power key (push button)
Used to turn on/off the module
PON
J0203
Auto-power on control
USB_BOOT
S0203
Emergency download
RESET
S0201
Reset button (push button)
