Smart Module Series
SC206E_Series_Hardware_Design 102 / 115
8.2. Recommended Footprint

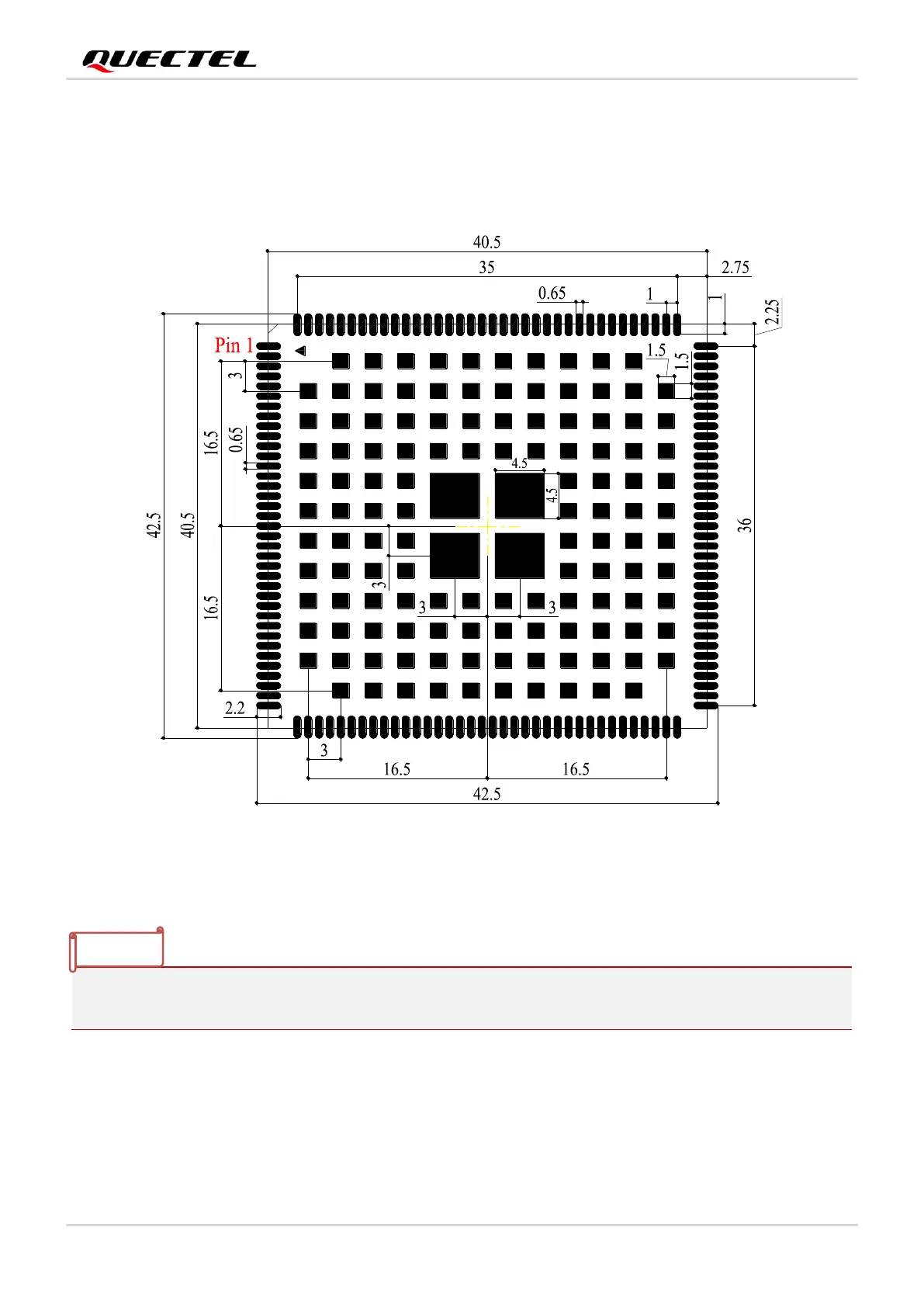

Figure 42: Recommended Footprint (Top View)
Keep at least 3 mm between the module and other components on the motherboard to improve
soldering quality and maintenance convenience.
