Smart Module Series
SC206E_Series_Hardware_Design 84 / 115

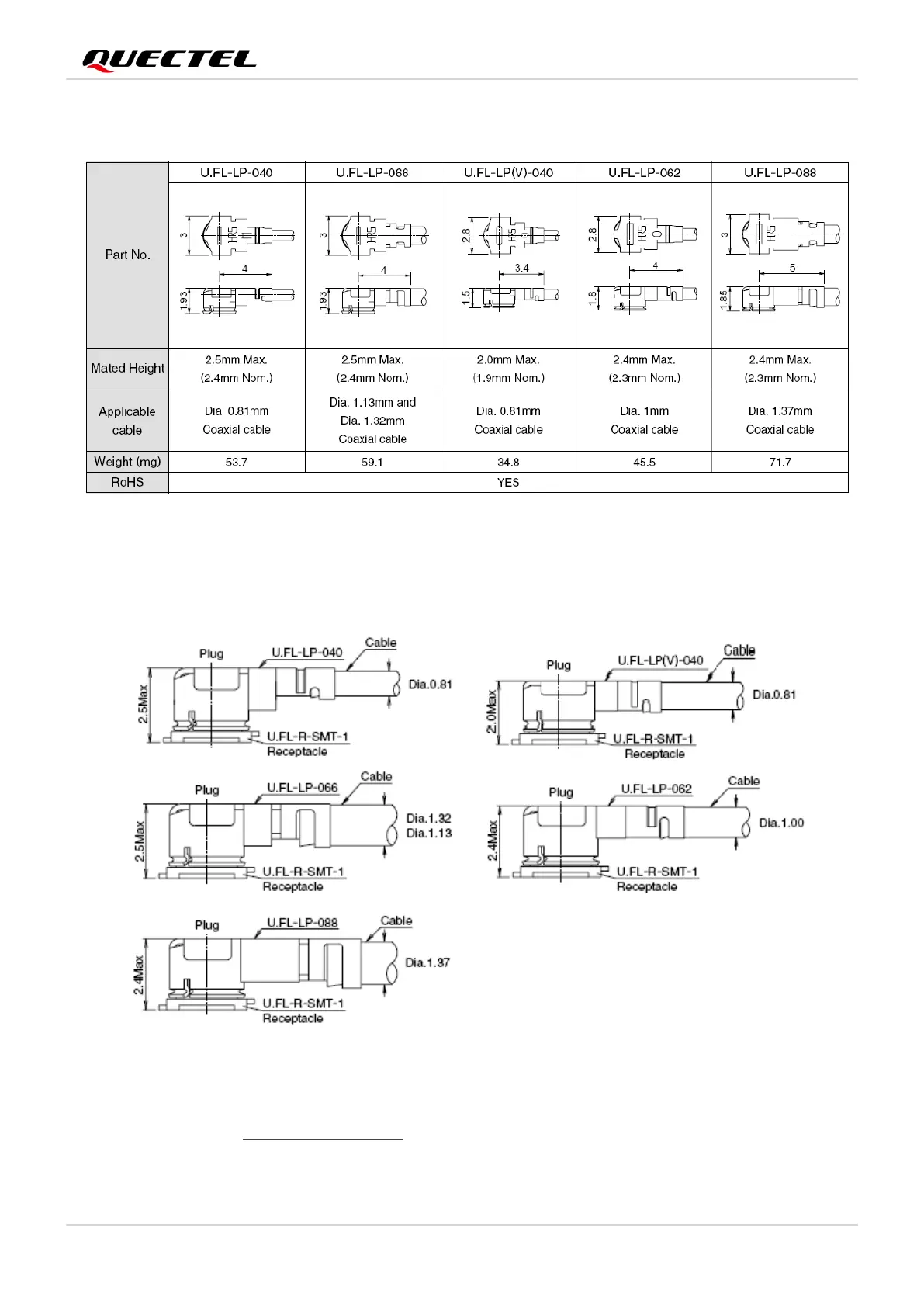

U.FL-LP serial plugs listed in the following figure can be used to match U.FL-R-SMT.
Figure 38: Mechanicals of U.FL-LP Plugs
The following figure describes the space factor of mated connectors.
Figure 39: Space Factor of Mated Connectors (Unit: mm)
For more details, visit http://www.hirose.com.
