Quectel SG368Z Series User Manual

Smart Module Series

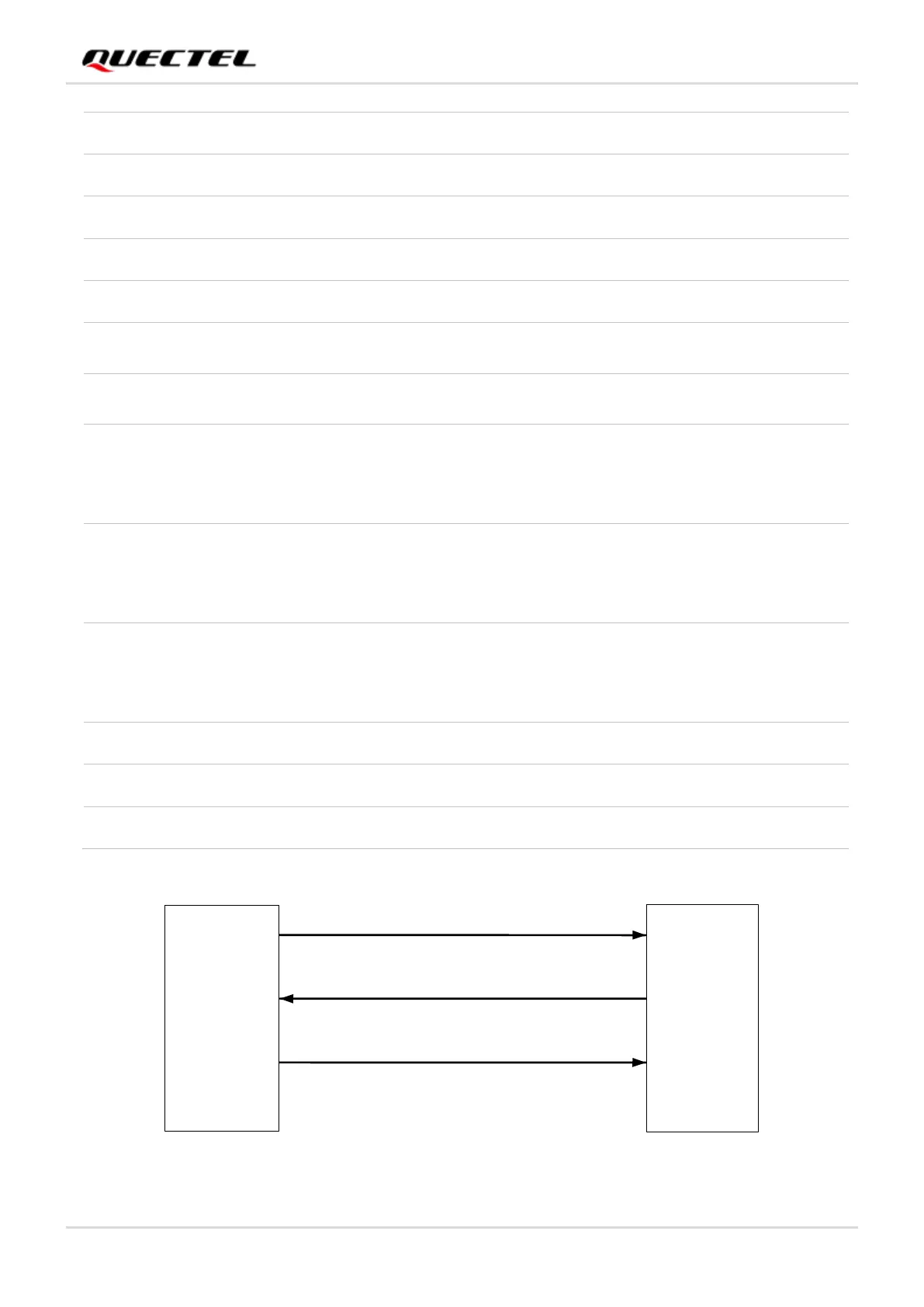

SG368Z_Series_Hardware_Design 71 / 113
Module
EP
1 × Lane RC
1 × Lane EP
PCIe 2.0 REFCLK
PCIE2_TX1_M
59
AO
PCIe2 transmit 1 (-)
PCIE2_RX0_P
68
AI
PCIe2 receive 0 (+)
PCIE2_RX0_M
64
AI
PCIe2 receive 0 (-)
PCIE2_RX1_P
73
AI
PCIe2 receive 1 (+)
PCIE2_RX1_M
69
AI
PCIe2 receive 1 (-)
PCIE2_REFCLK_P
53
AI
PCIe2 reference clock (+)
If unused, connect this pin
to ground.
PCIE2_REFCLK_M
49
AI
PCIe2 reference clock (-)
If unused, connect this pin
to ground.
PCIE2_CLKREQ0_N
364
DIO
PCIe2 channel 0 clock request
When PCIe2 is configured
in PCIe × 2 lane mode, this
pin is used for clock request
function.
PCIE2_WAKE0_N
363
DIO
PCIe2 channel 0 wake up
When PCIe2 is configured
in PCIe × 2 lane mode, this
pin is used for wake up
function.
PCIE2_RST0_N
362
DIO
PCIe2 channel 0 reset
When PCIe2 is configured
in PCIe × 2 lane mode, this
pin is used for reset
function.
PCIE2_CLKREQ1_N
368
DI
PCIe2 channel 1 clock request
PCIE2_WAKE1_N
369
DI
PCIe2 channel 1 wake up
PCIE2_RST1_N
358
DO
PCIe2 channel 1 reset
