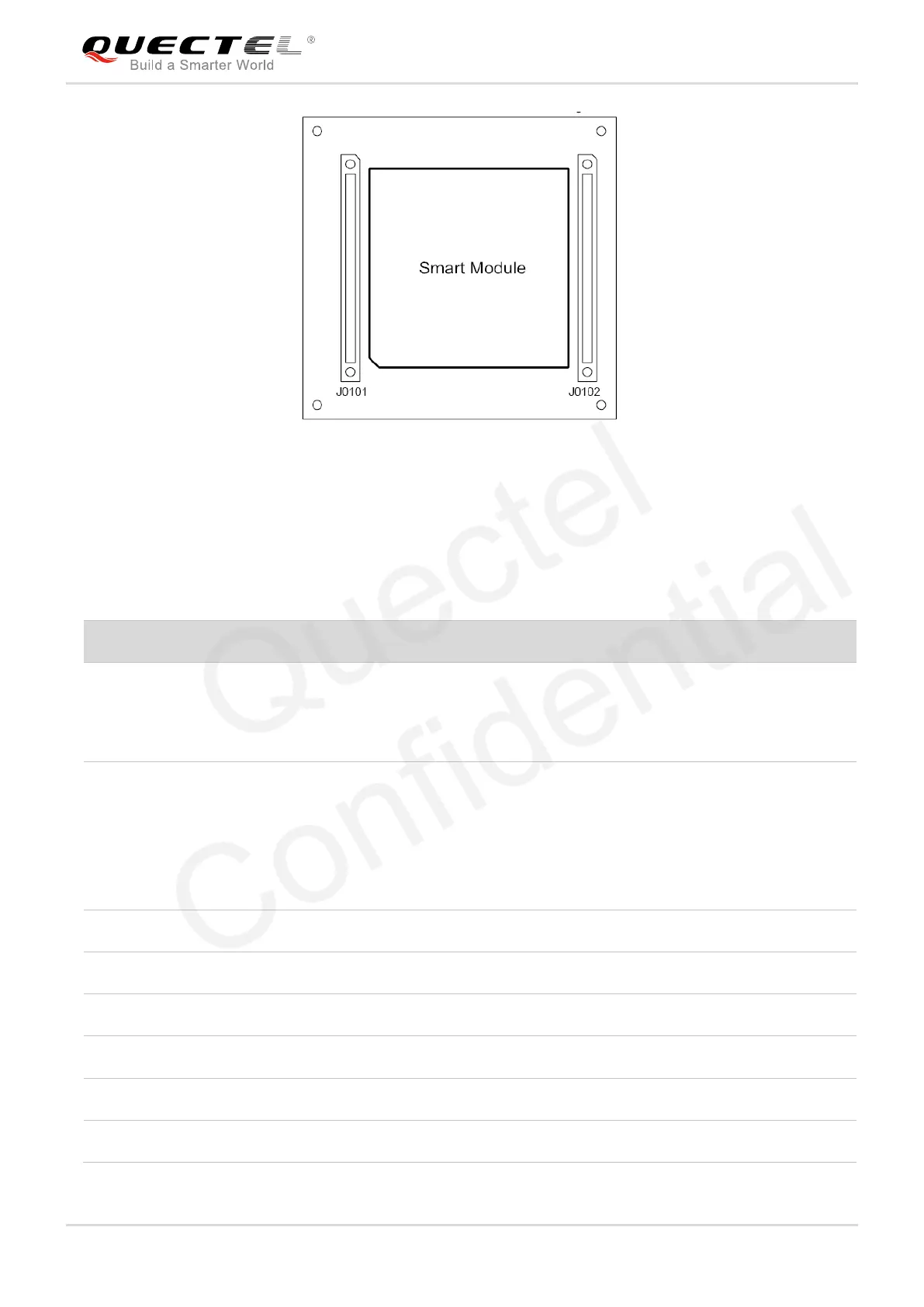

Figure 16: Sketch Map of Smart TE-A
The following table describes the pin definition of the two B2B connectors J0101 and J0102.
Table 6: Pin Definition of B2B Connectors
Pin No. of J0101
Pin Name of J0101
Pin No. of J0102
Pin Name of J0102
1, 11, 37, 71, 83, 90, 94,
101, 103, 104, 109~111,
116, 122, 127~129, 134,
139, 140
GND
1
USIM1_VDD
2
LCD_RST1
2, 8, 14, 20, 21, 23, 26, 29,
32, 35, 41, 47, 53, 59, 65,
73, 79, 85, 90, 91, 94, 97,
98, 102, 103, 109, 114,
115, 120, 121, 126, 132,
139
GND
3
UART1_CTS
3
USIM1_DET
4
INT_MIPI_HDMI
4
DSI1_LN3_P
5
UART1_RXD
5
USIM1_RST
6
RST_MIPI_HDMI
6
DSI1_LN3_N
7
UART1_RTS
7
USIM1_CLK
8
DOWNLOAD_NFC
9
USIM1_DATA
