Quectel Smart EVB G2

Smart LTE Module Series
Smart EVB G2 User Guide
Smart_EVB_G2_User_Guide Confidential / Released 47 / 59
D0301
D0302

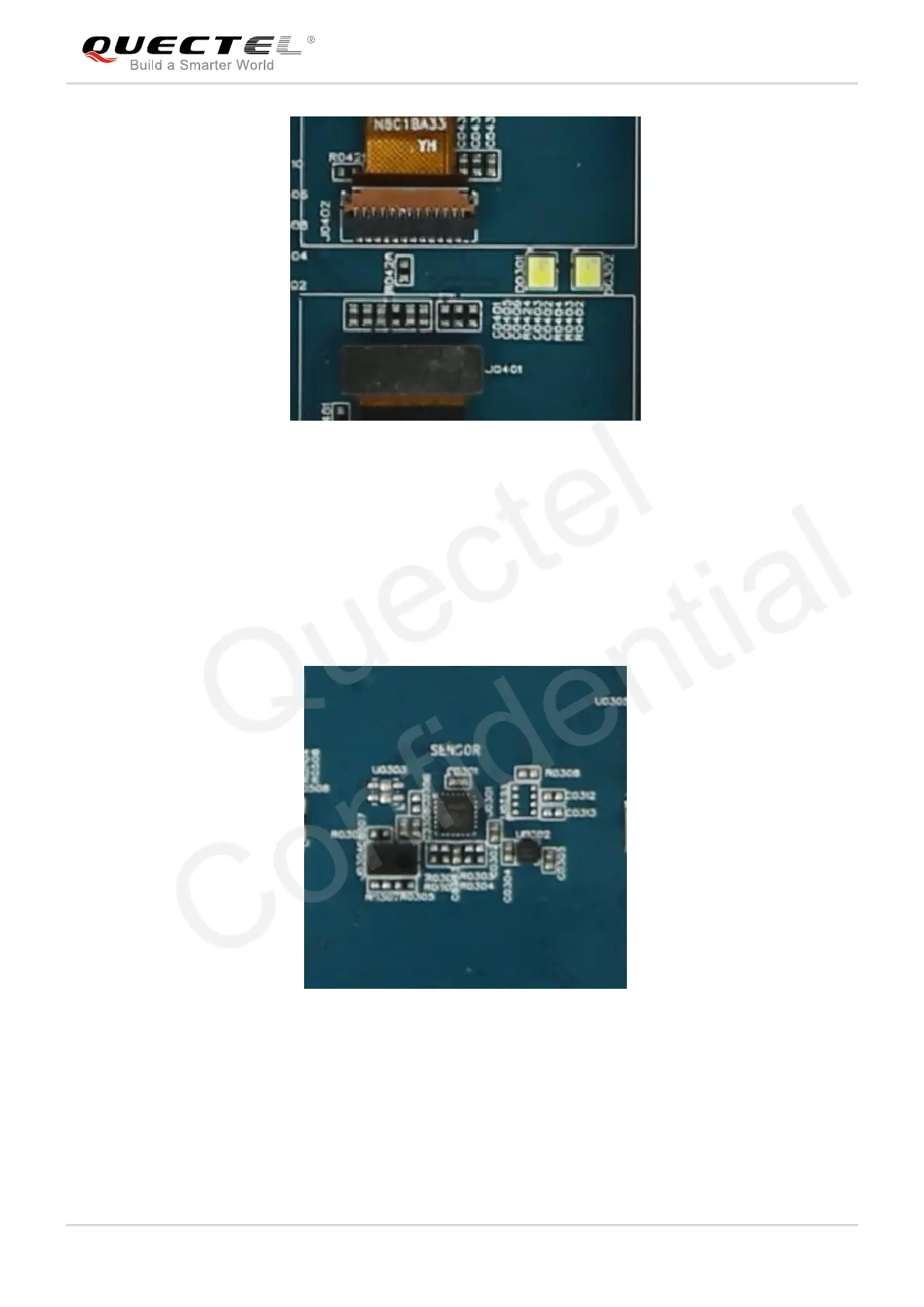

Figure 40: Flashlights
Sensors 4.12.
Smart EVB G2 provides three sensors for debugging which are shown in following figure.
Acce&Gyros
ALS/PS
Compass
Figure 41: Sensors
