Smart LTE Module Series
Smart EVB G2 User Guide
Smart_EVB_G2_User_Guide Confidential / Released 39 / 59

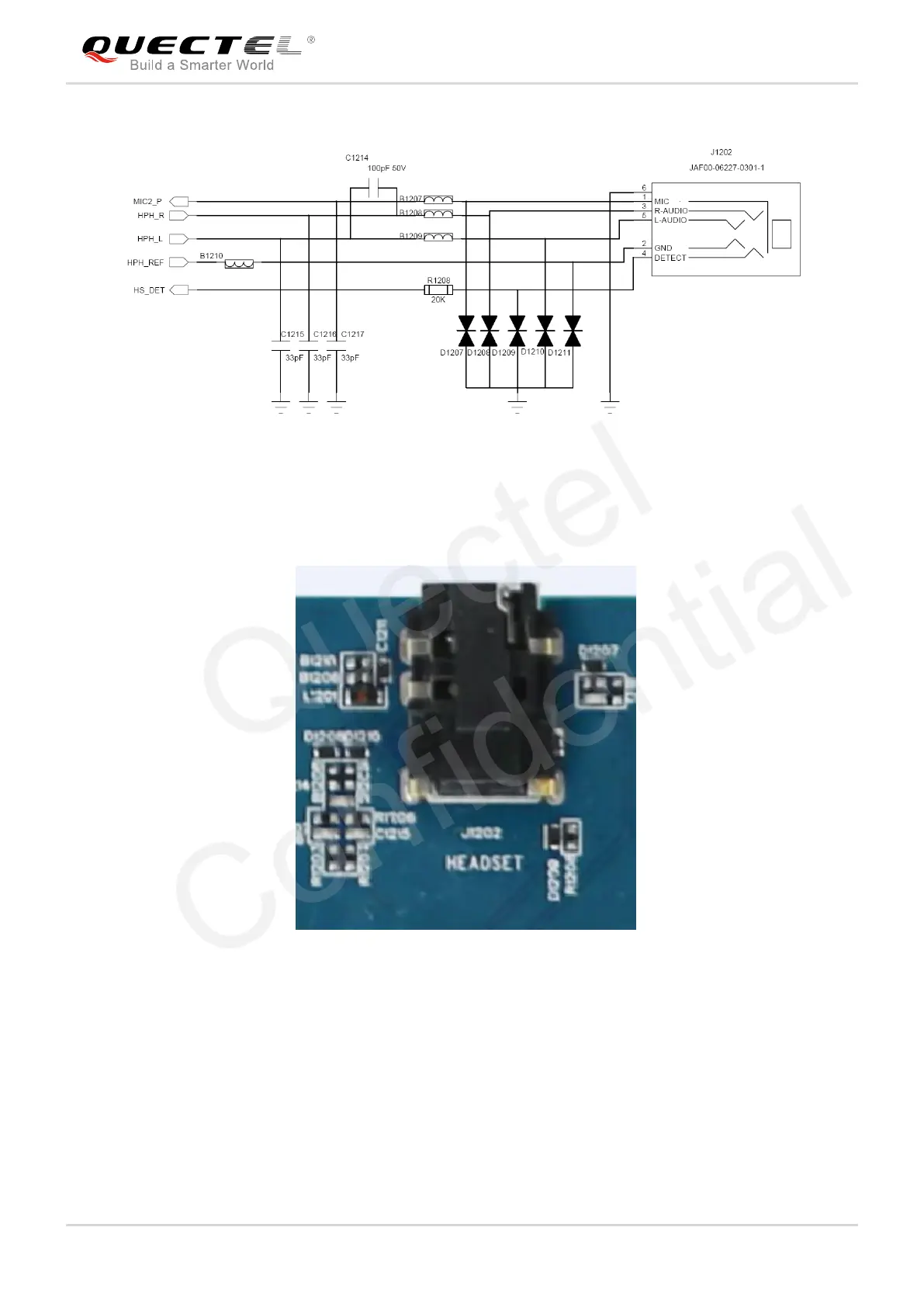

Figure 27: Reference Circuit Design for Headset Interface
The following figure shows the pin assignments of headset interface.
12
3
4
5
6
Figure 28: Pin Assignments of Headset Interface
The following table shows the pin definition of headset interface.
