Main (U)SIM card
connector
Sub (U)SIM card
connector
CD1 CD2 C7 C6 C5 C4 C3 C2 C1
C7 C6 C5
C3 C2 C1

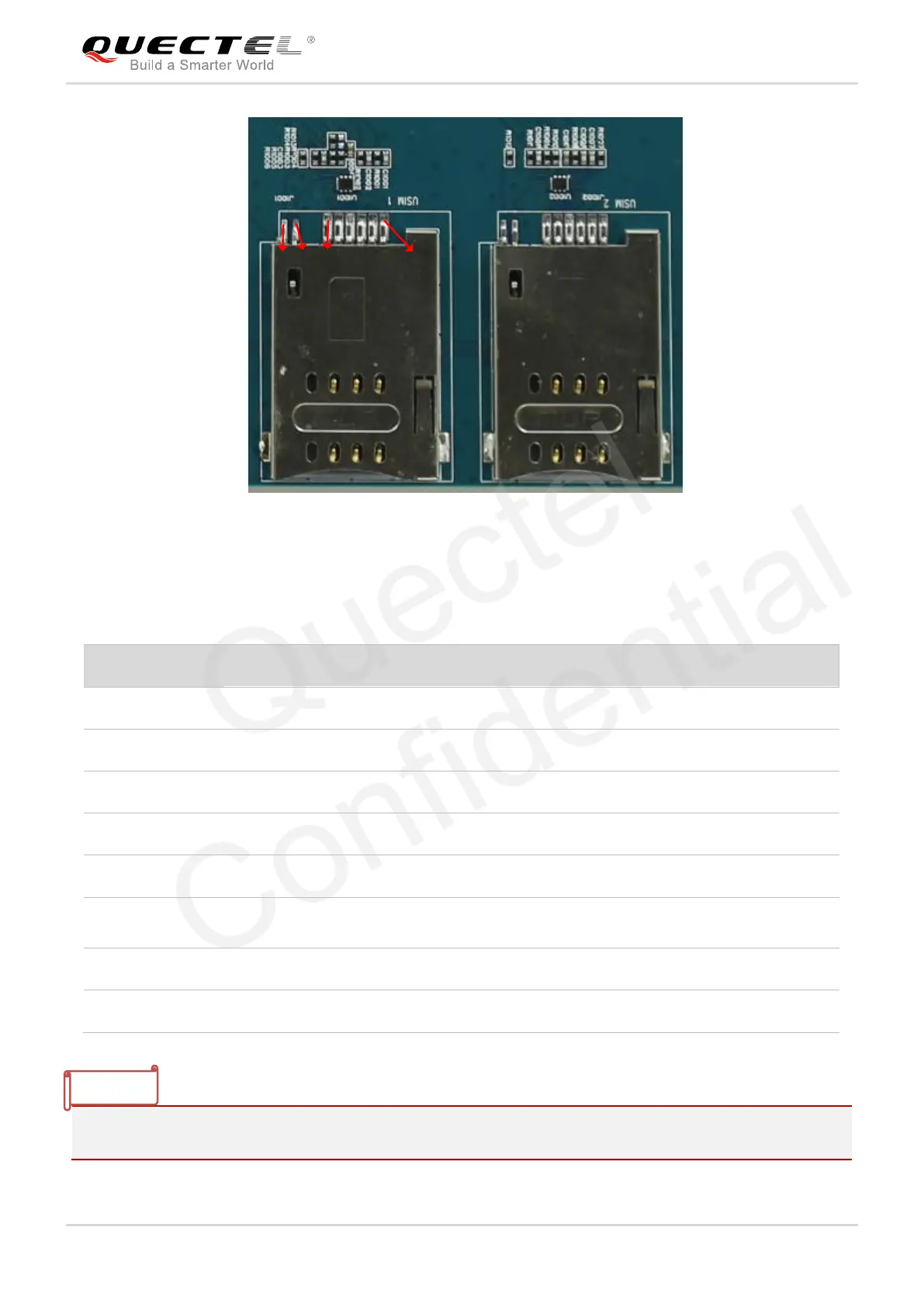

Figure 34: Pin Assignments of Main (U)SIM Card Connector
Table 9: Pin Definition of Main (U)SIM Card Connector
The schematic and pin assignments of J1002 are the same as J1001’s.
No.
Pin Name
I/O
Function
C1
USIM_VDD
O
(U)SIM card power supply
C2
USIM_RST
O
(U)SIM card reset signal
C3
USIM_CLK
O
(U)SIM card clock signal
C5
GND
Ground
C6
VPP
Not connected
C7
USIM_DATA
I/O
(U)SIM card clock signal;
Bi-directional
CD1
USIM_GND
GND
(U)SIM card detection
CD2
USIM_PRESENCE
I
(U)SIM card detection
