The following table shows the pin definition of PCM and I2C interface which can be applied on audio

codec design.

Table 14: Pin Definition of PCM and I2C Interface

Pin Name

Pin No.

I/O

Description

Comment

PCM_IN

PCM data input.

1.8V power domain.

PCM_OUT

PCM data output.

1.8V power domain.

PCM_SYNC

PCM data frame sync signal.

1.8V power domain.

PCM_CLK

PCM data bit clock.

1.8V power domain.

I2C_SCL

I2C serial clock.

Require external pull-up

resistor. 1.8V only.

I2C_SDA

I2C serial data.

Require external pull-up

resistor. 1.8V only.

Clock and mode can be configured by AT command, and the default configuration is master mode using

short sync data format with 2048kHz PCM_CLK and 8kHz PCM_SYNC. In addition, UC20’s firmware has

integrated the configuration on NAU8814 application with I2C interface. Refer to document [1] about the

command AT+QDAI for details.

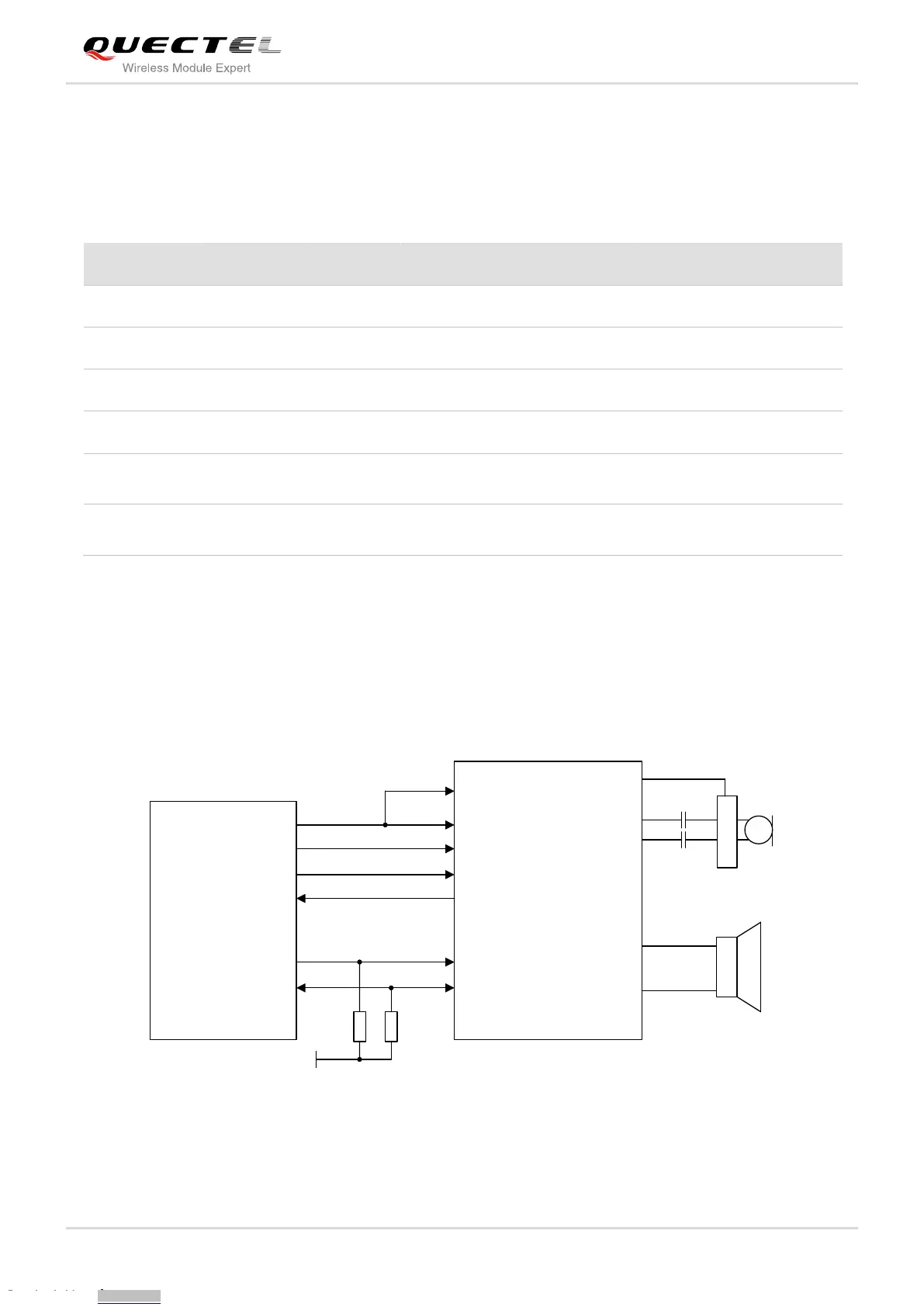

The following figure shows the reference design of PCM interface with external codec IC.

PCM_IN

PCM_OUT

PCM_SYNC

PCM_CLK

I2C_SCL

I2C_SDA

NAU8814

Module

1.8V

4.7K

BCLK

MCLK

DACIN

ADCOUT

SCLK

SDIN

BIAS

MIC_BIAS

MIC+

MIC-

SPKOUT+

SPKOUT-

Figure 28: Reference Circuit of PCM Application with Audio Codec
