UMTS/HSPA Module Series

UC20 Hardware Design

UC20_Hardware_Design Confidential / Released 71 / 82

7.2. Footprint of Recommendation

1.9

7.8

1.9

9.049.3

6.45

3.45

4.4

22.1

6.16

0.8

1.3

4.8

4.6

2.5

1.0

3.4

6.8

Keepout area

29.0

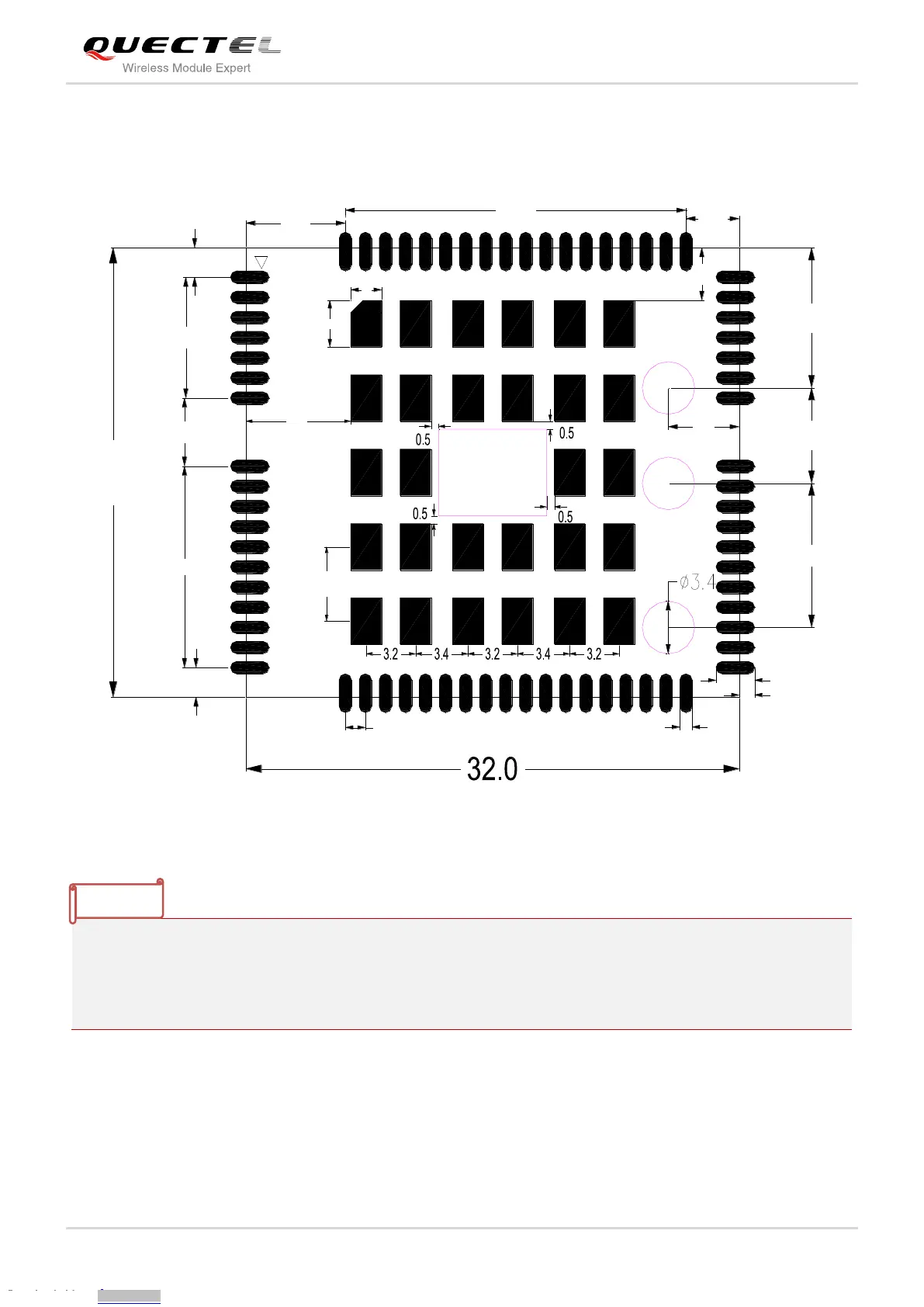

Figure 42: Recommended Footprint (Top View)

1. Pads 73~84 at the bottom center of module cannot be designed. And keep out the areas shown in

pink on the above figure in the host PCB.

2. In order to maintain the module, keep about 3mm between the module and other components in the

host PCB.

NOTES
