UMTS/HSPA+ Standard Module Series
UC200T-GL Mini PCIe Hardware Design
UC200T-GL_Mini_PCIe_Hardware_Design 42 / 51

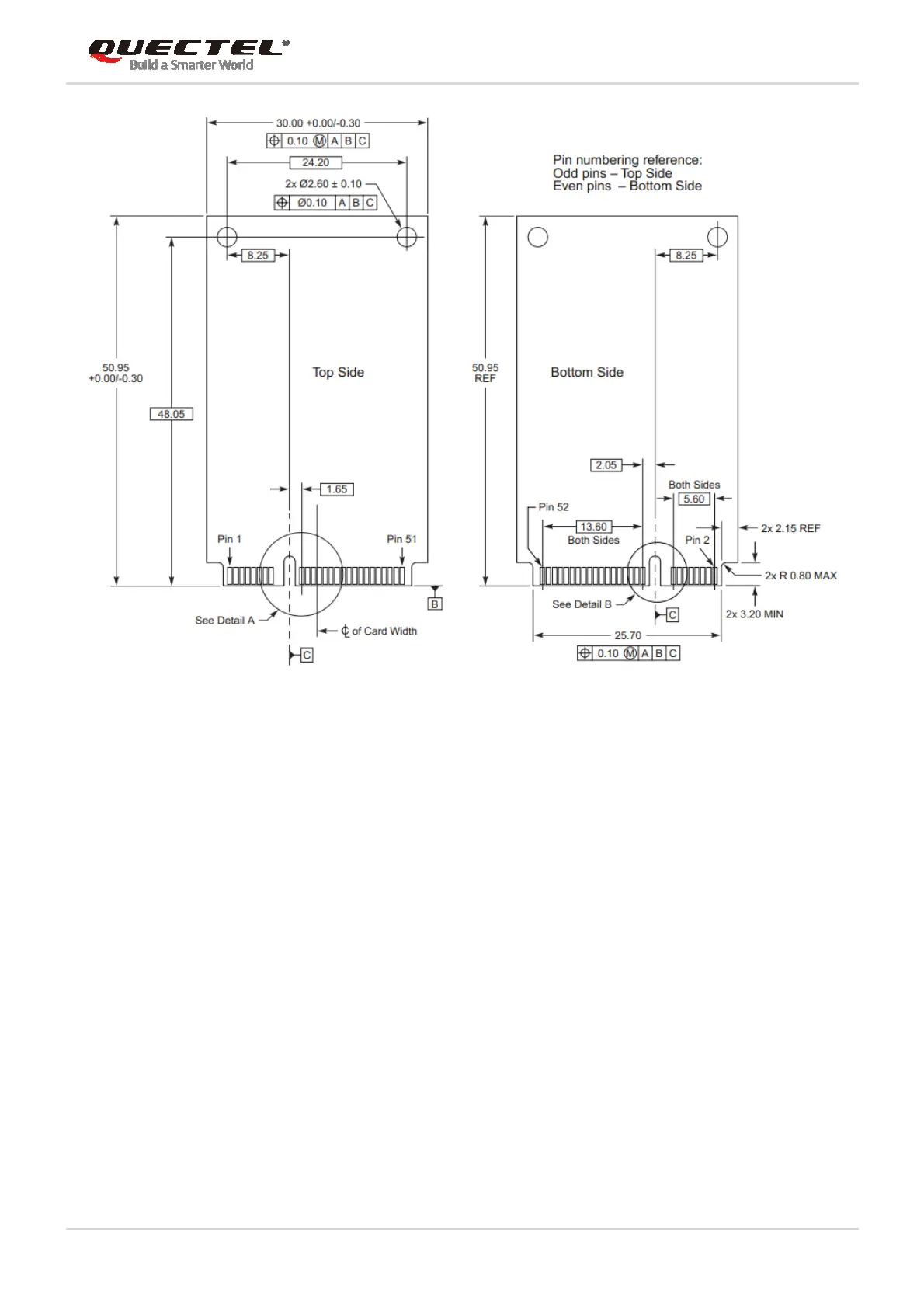

Figure 19: Standard Dimensions of Mini PCI Express
UC200T-GL Mini PCIe adopts a standard Mini PCI Express connector which compiles with the directives
and standards listed in document [1]. The following figure takes the Molex 679100002 as an example.
