Quest Engineering X10

COIL ROUTING
3
STEP
•

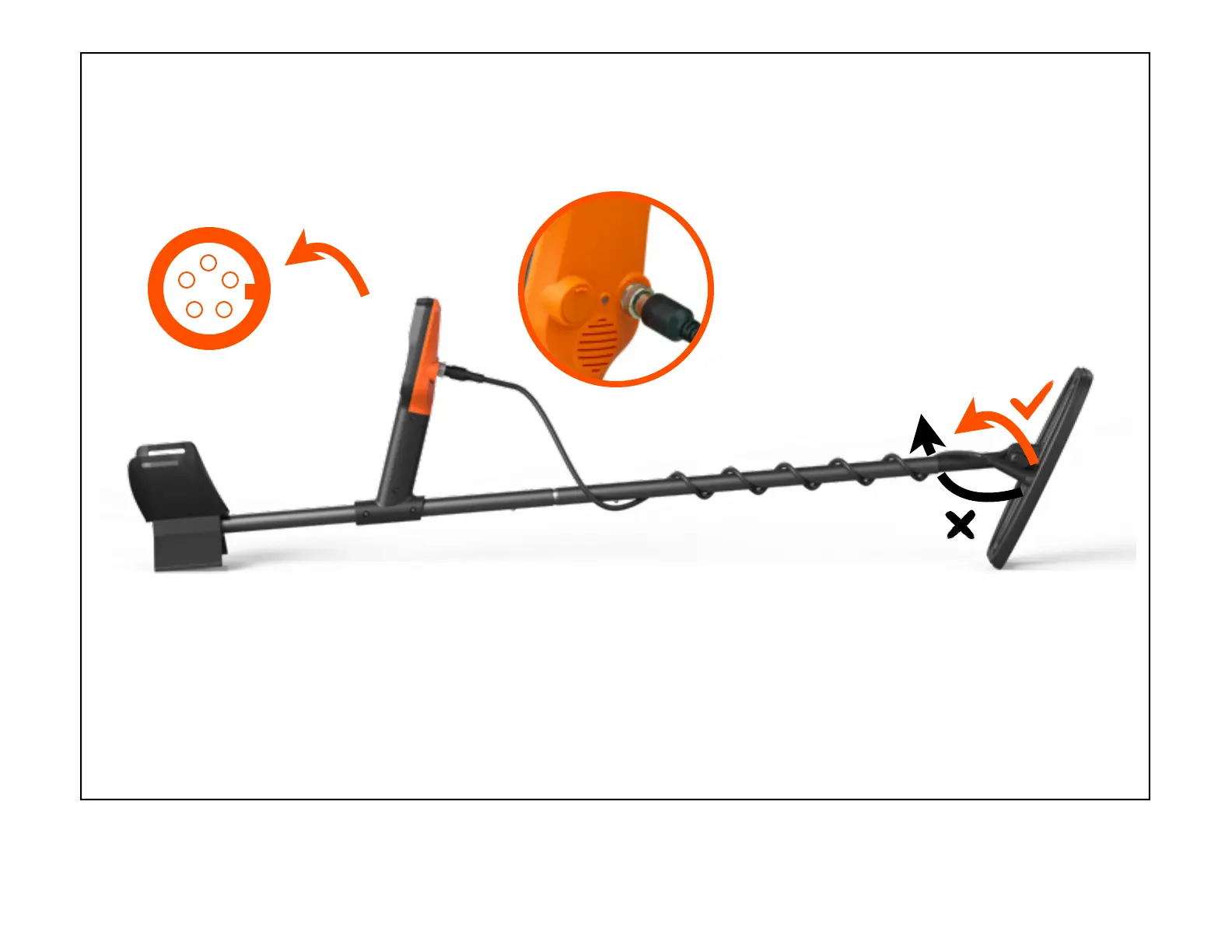

Wrap the coil cable to the shaft from the lower part.
•
Pay attention to the spiral direction.
•
Leave certain length at the tilting part to avoid damage
when folding the coil.
•
Match the connector, push in and tighten the ring(Fig 1).
Fig 1
