(1) The chain counter can reset itself if the voltage is less than 9 Vdc.
(2) Typical value with back-lighting and torch off and windlass not on.
(3) Typical value with back-lighting on at highest level and windlass on.
(4) With temperatures below 0°C the crystals in the LCD slow down.
(5) Except for the area where the electric contacts are connected (IP 00).

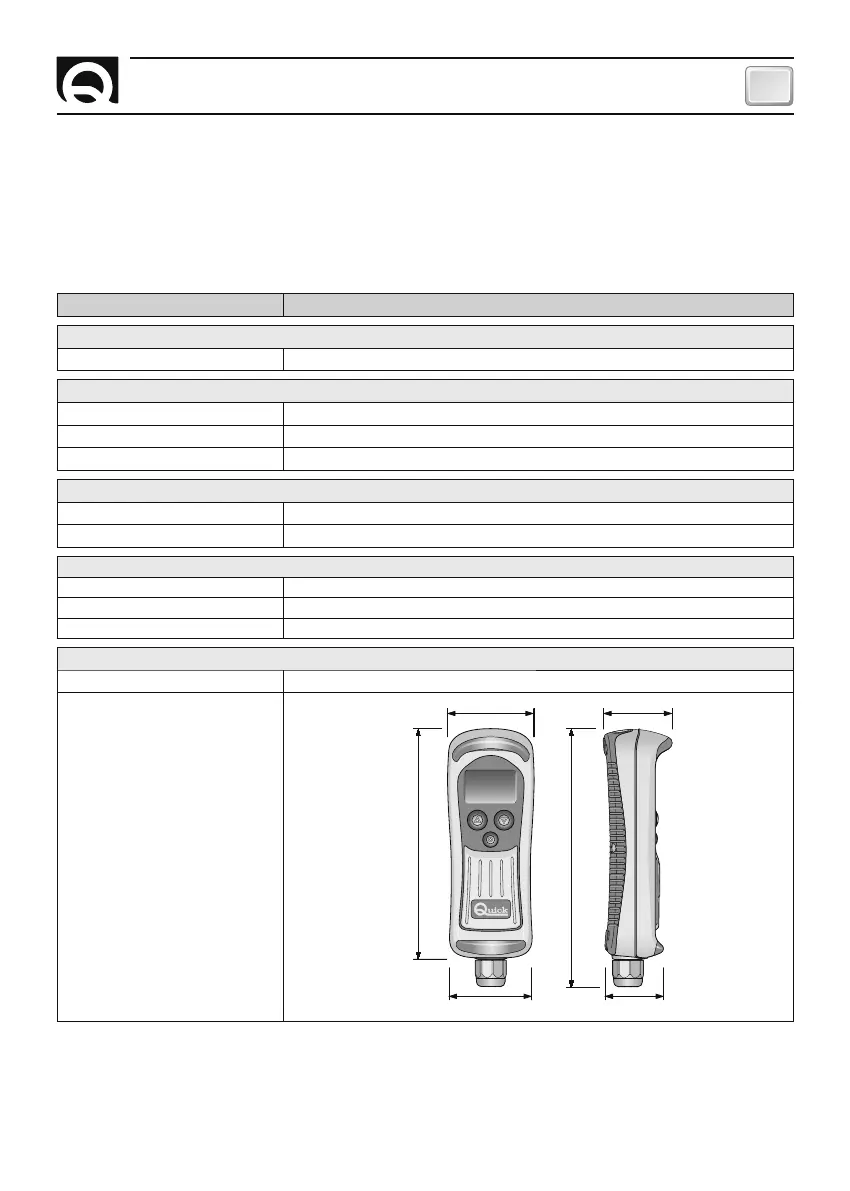

TECHNICAL DATA
MAINTENANCE
The chain counter does not require any particular maintenance. To assure top performance, check the
cables and electrical connections once a year.
Clean the chain counter with a soft rag dampened in water. Do not use chemicals or harsh products to
clean the chain counter.
MAINTENANCE - TECHNICAL DATA
MODELS CHC 1102 M
OUTPUT CHARACTERISTICS
UP/DOWN contacts current 4A max
INPUT CHARACTERISTICS
Supply voltage (1) from 9 to 30 Vdc
Current absorbed when idling (2) 40 mA
Maximum current absorbed (3) 165 mA + current used by solenoid/reversing solenoid unit
AMBIENT CHARACTERISTICS
Operating temperature (4) -20 ÷ +70 °C
Degree of protection (5) IP 67
GENERAL
Communication interface CAN BUS with differential transceiver
Clock battery CR2032 (3Vdc)
EMC class EN 60945 - FCC Part 15 Rules 47
CASE
Weight 750 g
Dimensions (WxHxD)
62.2 x 185 x 49.4 mm
165
59.1 41.6
62.2 49.4
185
QUICK
®
RESERVES THE RIGHT TO MODIFY THE TECHNICAL CHARACTERISTICS OF THE EQUIPMENT AND THE CONTENTS OF THIS MANUAL WITHOUT PRIOR NOTICE.
